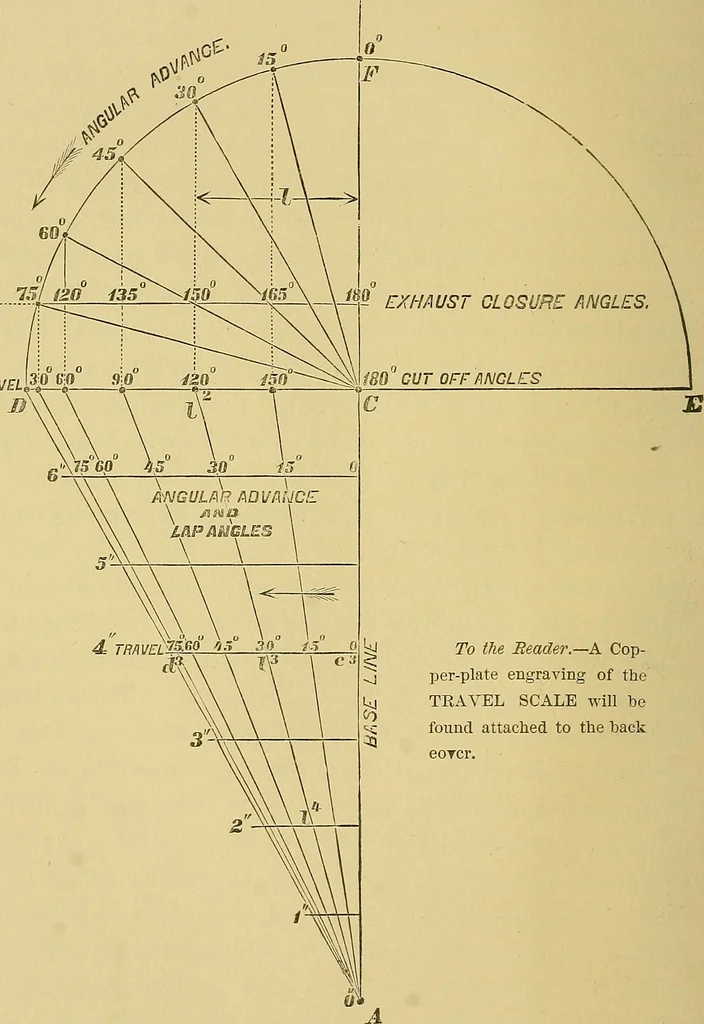

ion. On this accountthe single eccentric is rarely used to effect cut-offs of lessthan | the stroke. Earlier cut-offs require two valves andtwo eccentrics, the one set for regulating the cut-off of thesteam, the other its admission and escape. This subjectwill be more fully discussed in Part V. 36… … To the Header.—A Cop-per-plate engraving of theTEAVEL SCALE will befound attached to the hackeoTcr. PISTOL, CRANK AND V A L V E 31 Oil 0 X S . 37 Let EFD represent the path traversed by the centre ofan eccentric whose throw equals 3| inches, consequentlythe travel of its valve=7 inches. Then C F at…
