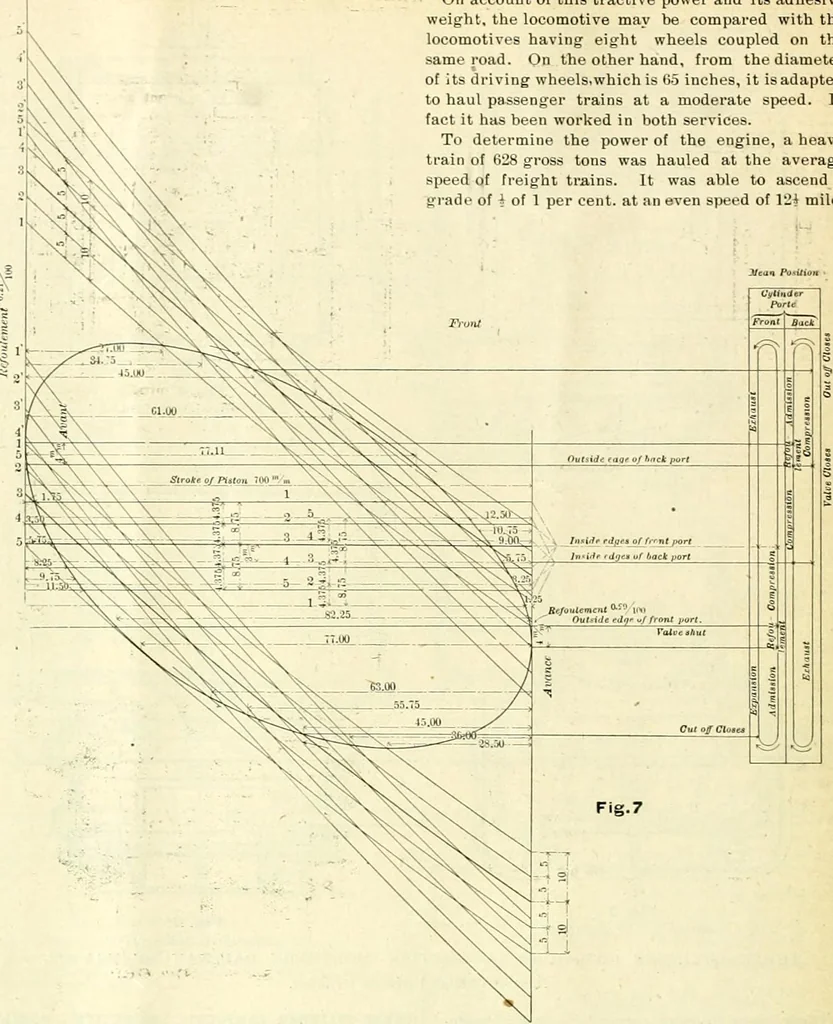

ractive power and its adhesiveweight, the locomotive may be compared with thelocomotives having eight wheels coupled on thesame road. On the other hand, from the diameterof its driving wheels.which is 65 inches, it is adaptedto haul passenger trains at a moderate speed. Infact it has been worked in… … CURVE OF DISTRIBUTION HIGH PRESSURE CYLINDERPOUND LOCOMOTIVE. [Actual displacement of valve 1-7 of piston motion. The diagram gives tv?o sets of lines for thethe greatest inclination are for an increased stroke.] curve gives the extent of the points of distributionin addition to that of admission.…
