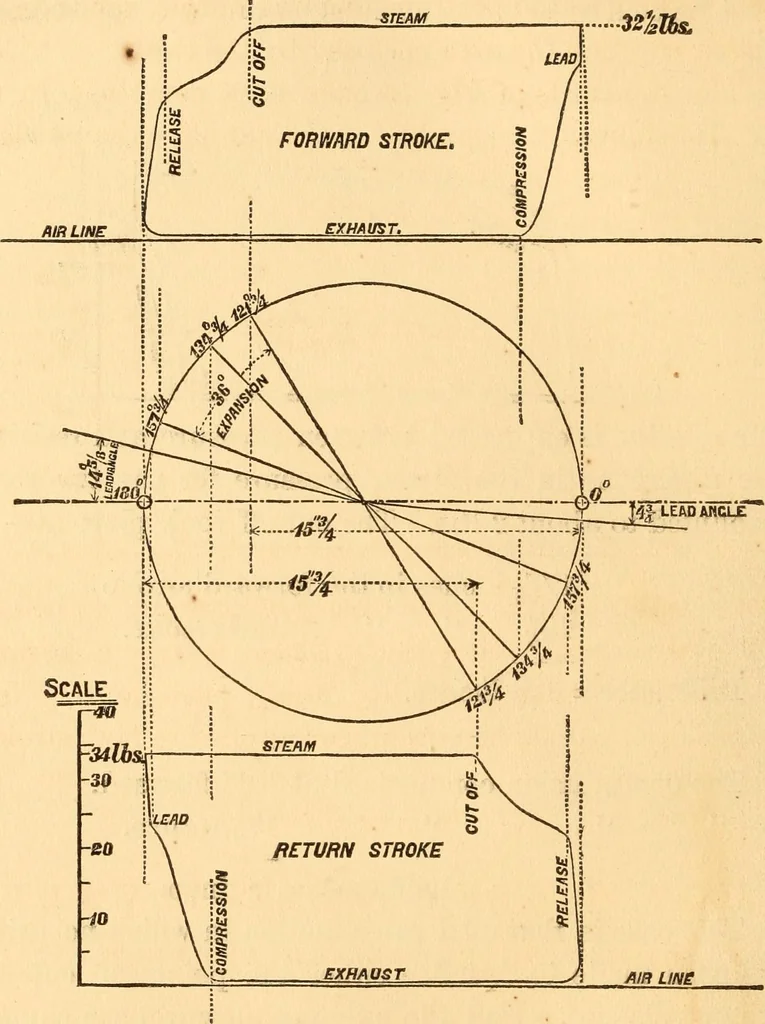

Had the exhaust closure been equalizedthe lines ab, c d, would have coincided. Subsequently, the equalization of the cut-off and ex-haust closure was accomplished with the same valve, byincreasing its angular advance 5° and extending its eccen-tric rod. The effect of these changes is shown in Fig.… … cut-offs took place at 15| inches, compressions at 17|(return stroke locations), the lead angle of the forwardstroke became 4§° and that of the return 14|, correspondingwith an \ inch lead forward and an \ inch back. the crank, however, for any ratio of crank to connecting rod, may readily…
