Practical applied electricity; a book in plain English, for the practical man. Theory, practical applications and examples (1911)
Moreton, David Penn, 1882- · Chicago, The Reilly & Britton co · leaf 133

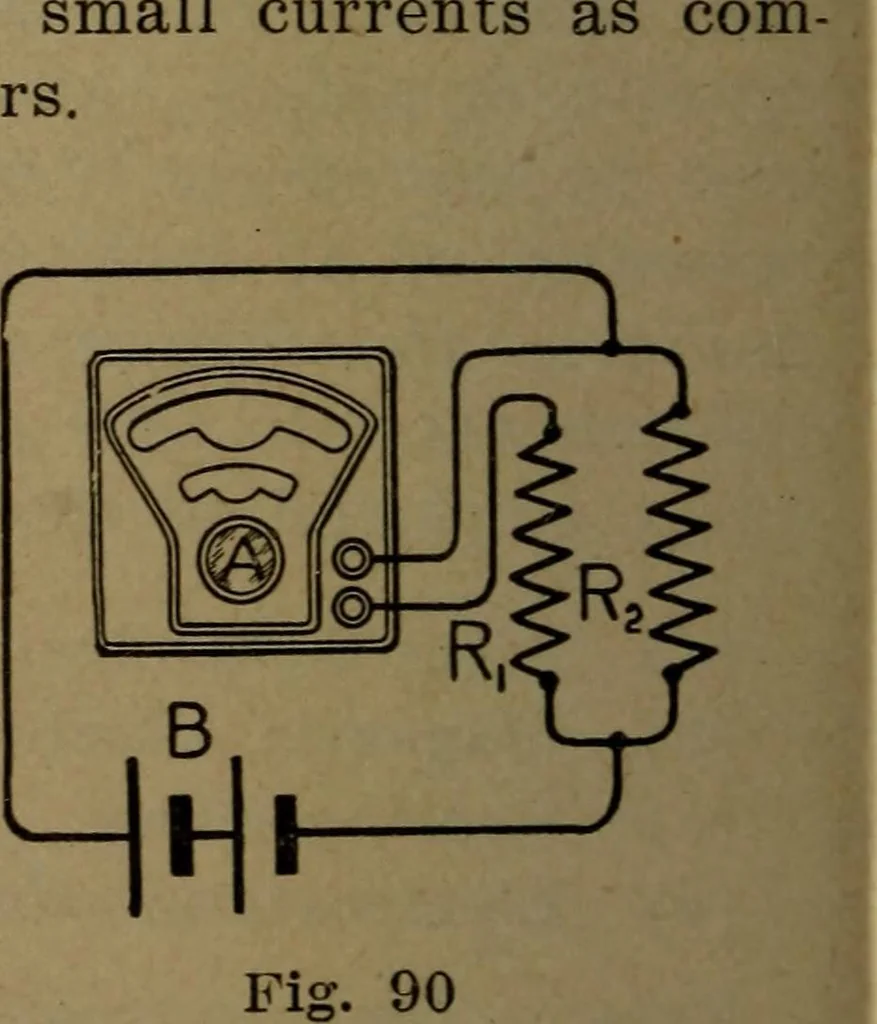

Fig. 89 … Fig. 90 In Fig. 89, the ammeter (A) is connected in series withthe battery (B) and the two resistances (Ri) and (R2)»which are in parallel. The ammeter in this case readsthe total current in the main circuit but it does not givethe current in either of the resistances (Ri) or (Ro). Ithowever, the…
Electrical engineering
