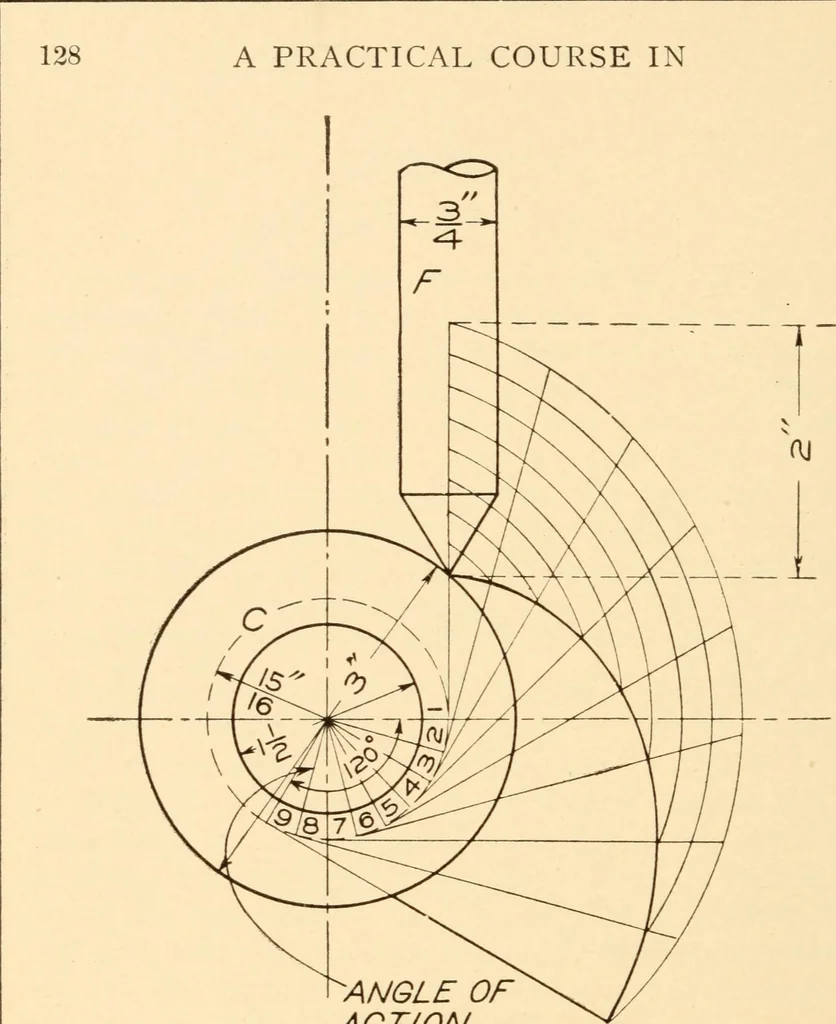

disk, although sometimes cyHndrical in shape. Har-vesters, printing presses, sewing machines, looms andsteam-valve mechanisms employ a considerable use A PRACTICAL COURSE IN … ^ANGLE OFACT/ON Fiff. 132 of cam constructions, Fig. 132, To draw an involutecam with a given rise in a given angle of action, usethe following: Let A = rise of the follower or throw, And X = the radius of the base circle C. As in the figure, the angle of action is 120 degrees, A = % X, % being the…
