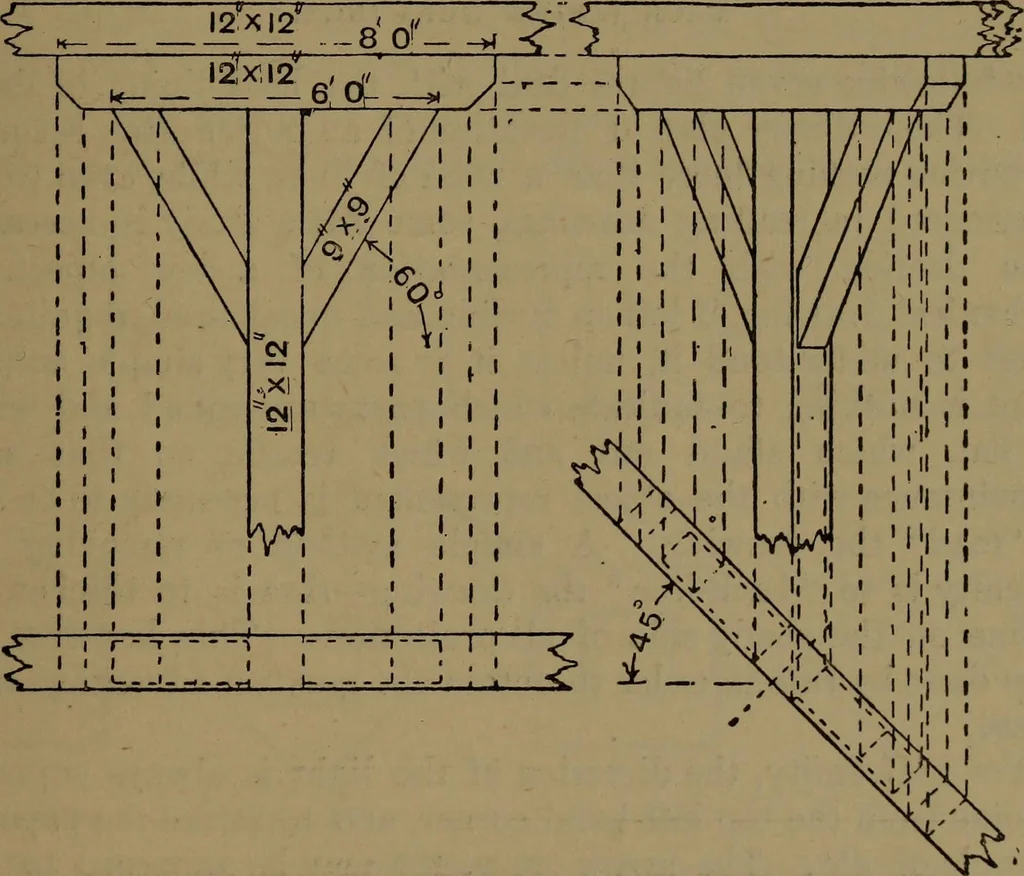

quiredscale (Fig. 107). Then assuming that the wall makes an angle of FROJEGTION. 103 45 degrees with the spectator, draw the plan of it, marking thecentre line, and also a cross centre line for face of arch. Projectlines upward from each angle, and also from the centre line atface of and back of… … Fig. 168.—Projection at an Angle of 45®. the angled elevation, but they can be obtained by intersections,the same as any other parts of the outline. A point on any partof any curve in the elevation as a, being projected down to theplan as 6, transferred to the angled plan as c, and projectedupwards…
