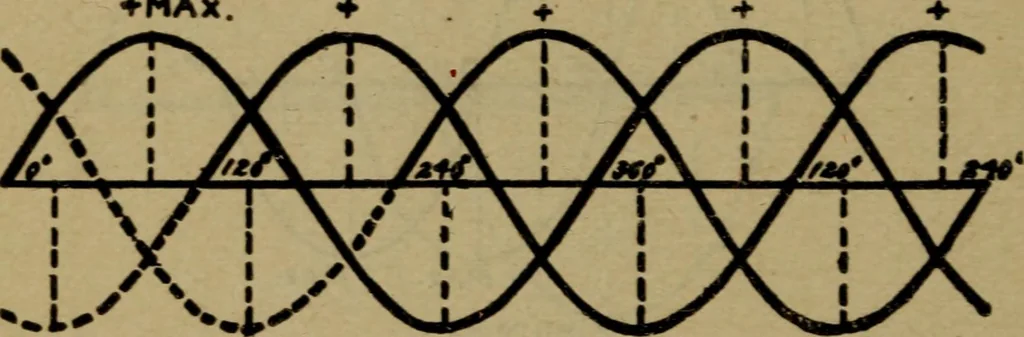

producing two phase current from the commutator of a bipo«<tr armature. 224 two bars, and therefore there is no current in the circuit.The circuit No. 2 is attached to bars which are in a verticalline, and the voltage between these bars is at a maximum.Fig. 84 makes it clear why it is that the… … I .^V I > •HAX Figure 85A diagram of the currents in a three phase line. three sliding rings shoAvn in Fig. 86 be connected to threecommutator bars 120 degrees apart on the commutator of atwo-pole dynamo, the current which is taken from thesethree sliding rings is a three-phase current, asshown…
