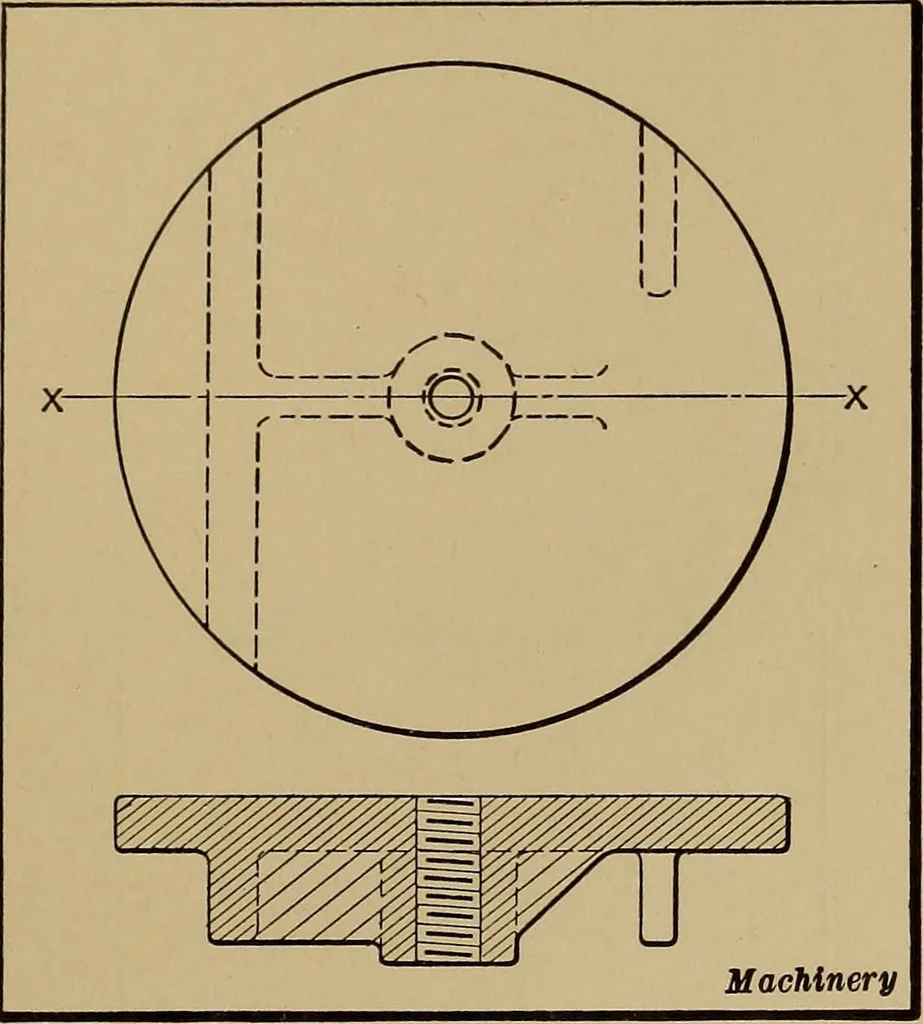

e they join the rest of theobject. Figures n and 12 show ribbed flanges. At A, Fig. n, isshown the true section on X-X, which some draftsmen use,but the representation at B is more generally acceptable, andwould be considered the correct one to use. The alternatemethod shown at C is also a correct… … Sectional View of Plate having Ribsand a Central Hub io8 MECHANICAL DRAWING be considered the correct one. The cross-sections at B or Cmight be used without the top views by simply giving thenumber of ribs in a note, and this would not be likely to leadto any misunderstanding. The representation at…
