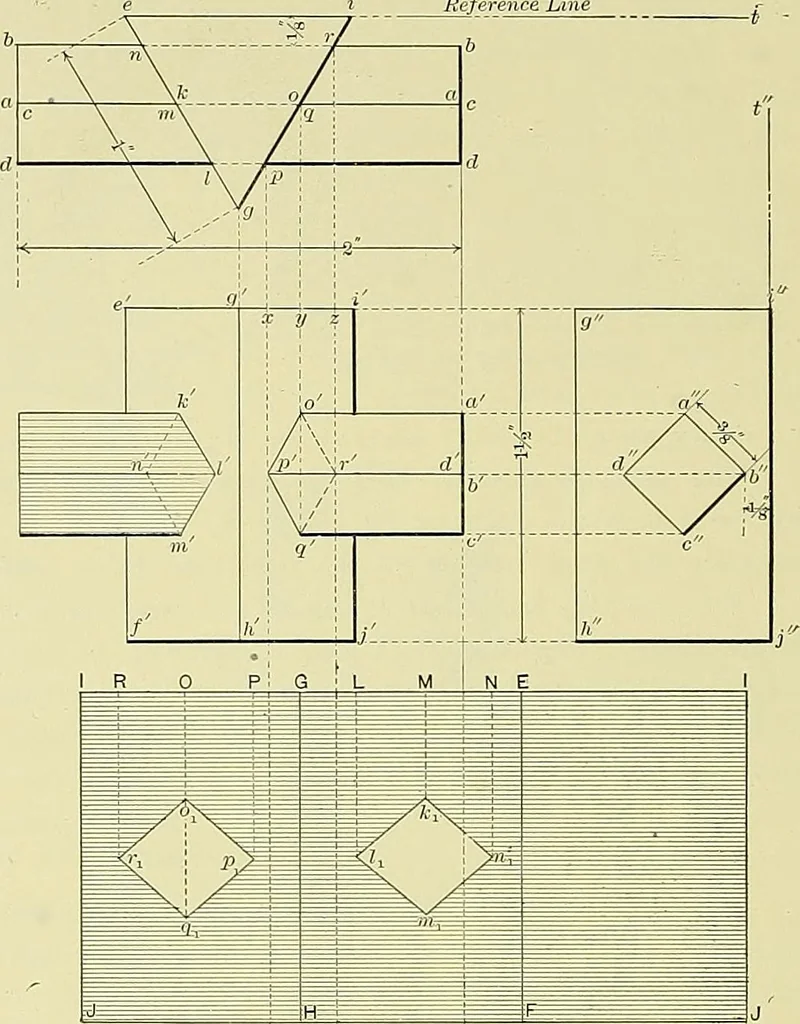

y the edges a, b, e and d of the hori-n, m, I, p, q, r—aird project to the elevations of the sameedge a a meets the other prism at o and h, Avhich projecto and h. Similarly for the remaining points. The development of the vertical prism is shown in the shaded rectangle IJ, of length Sgri…
