Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 350

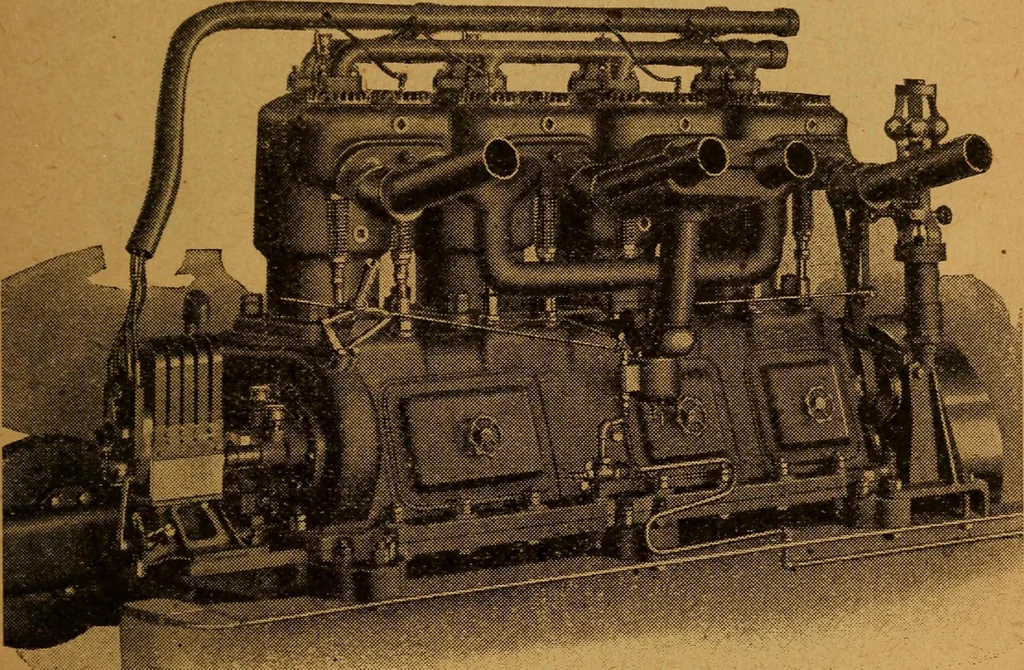

s of the motorare lubricated by the splash system with a positive forced feedoiler. The splash pools can be adjusted at a minutes noticeso that any desired oil level can be obtained. Grease cups pro-vide the lubrication for all bearings outside of the motor. Water is circulated by a direct driven… … Fig. 131. Views of the Four Cylinder Motor of the Big Four Tractor.Note the Massive Construction Compared with Automobile Practice. the front of the tractor is provided with a cooling fan that isdriven from the engine in a manner similar to automobile prac-tice. A high tension magneto is gear…
Internal combustion engines · Traction-engines
