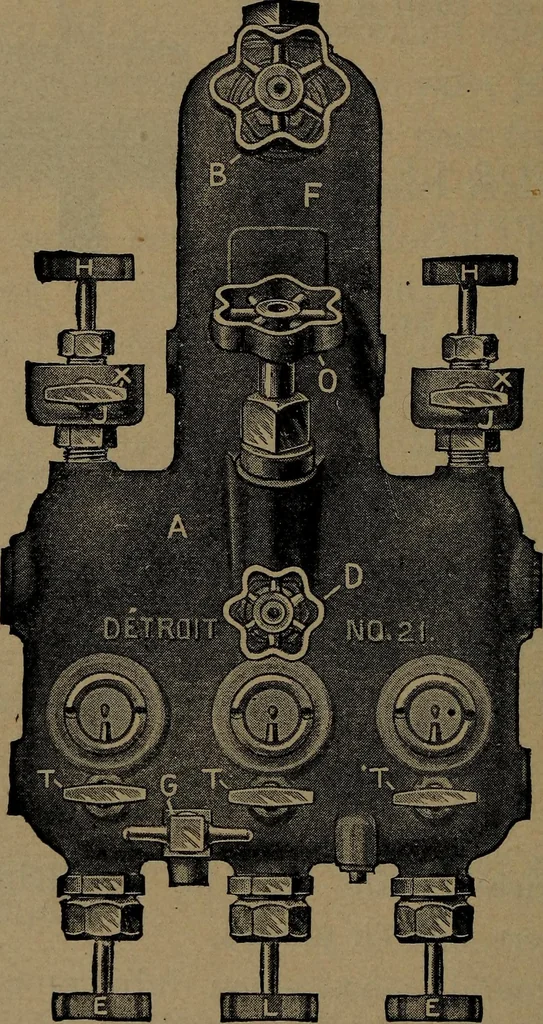

ubricators are hollowcastings having a chamber, A (as shown in Fig. 17), tocontain the oil. Attached to the top of the main body of the lubricatoris a condensing chamber, Fc To the top of the condensingchamber is connected a steam-supply pipe the oppositeend of which is connected to the spider. 94… … FlG. 17.—Detroit Lubricator, Front View. the feed through them to the cylinder, pipes called tallowpipes, are connected to the top of the sight feed bracketsand to the top steam chests and the steam pipe to the airpump. LUBRICATORS 95 293. When steam is admitted into the condensingchamber by…
