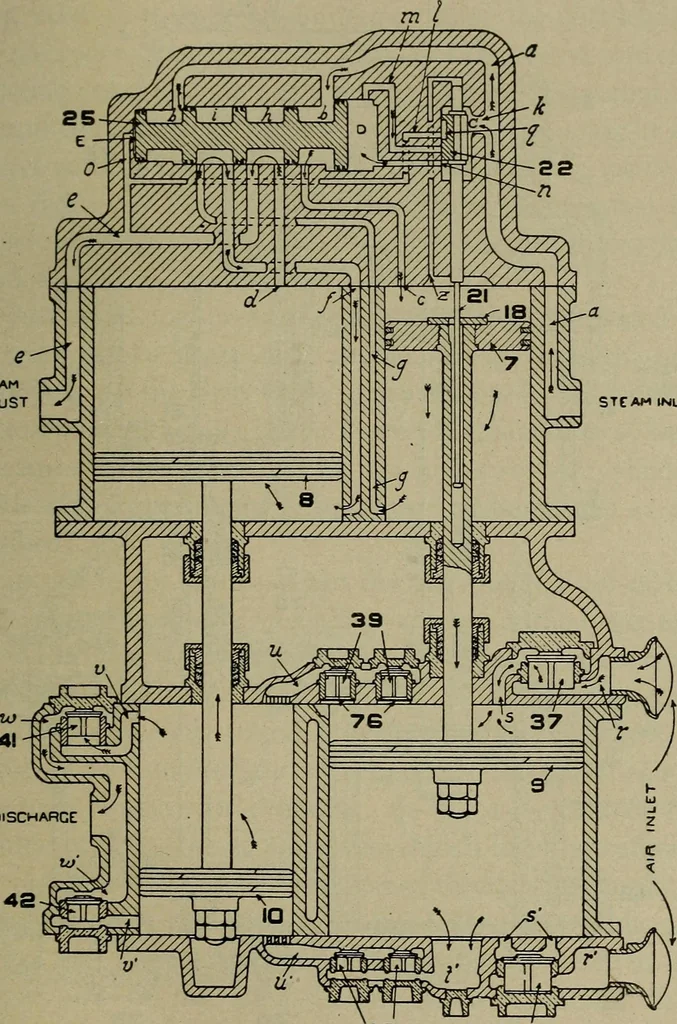

cylinder and forcing thepiston downward. The steam from below piston 7 is nowbeing exhausted through passage g, cavity /, and passage/ into the lower end of the low-pressure steam cylinder,forcing piston 8 upward. The steam on top of piston8 is exhausted to the atmosphere through passage d,cavity… … 40 38 Fio. 40.—8§-Inch Cross Compound Compressor, Up Stroke. 166 CROSS COMPOUND COMPRESSOR STEAM INLET
