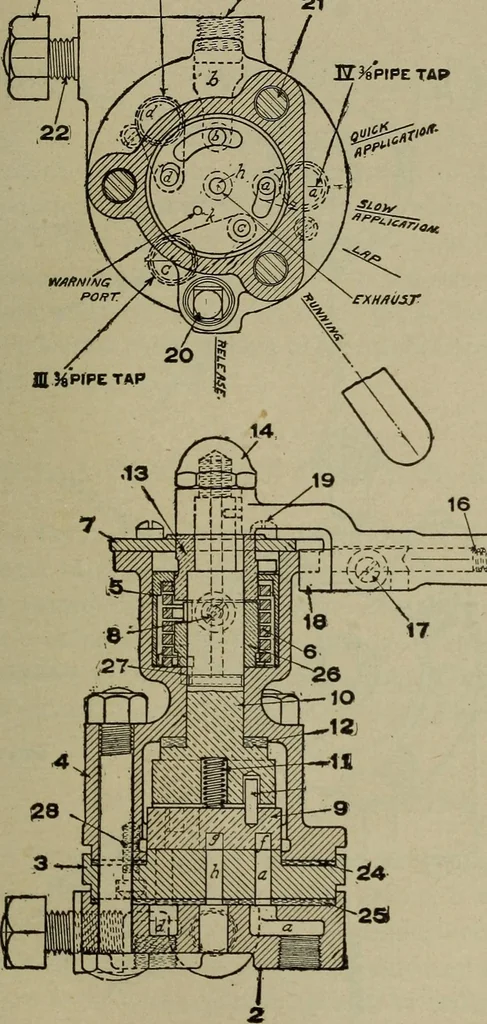

ing communica- Fig. 76a.—Rotary Valve S-6 Independent Brake Valve. tion through the distributing valve release pipe betweenthe application cylinder of the distributing valve and portI of the automatic brake valve, so that the distributingvalve can be released by the latter. With both the auto-matic… … —^ Fig. 77.—S-6 Independent Brake Valve, Reference Diagram.16 242 k « 03 IS I
