Hale, Joseph W. L. (Joseph Woodwell Ledwidge), 1886- · New York [etc.] McGraw-Hill book company · leaf 191

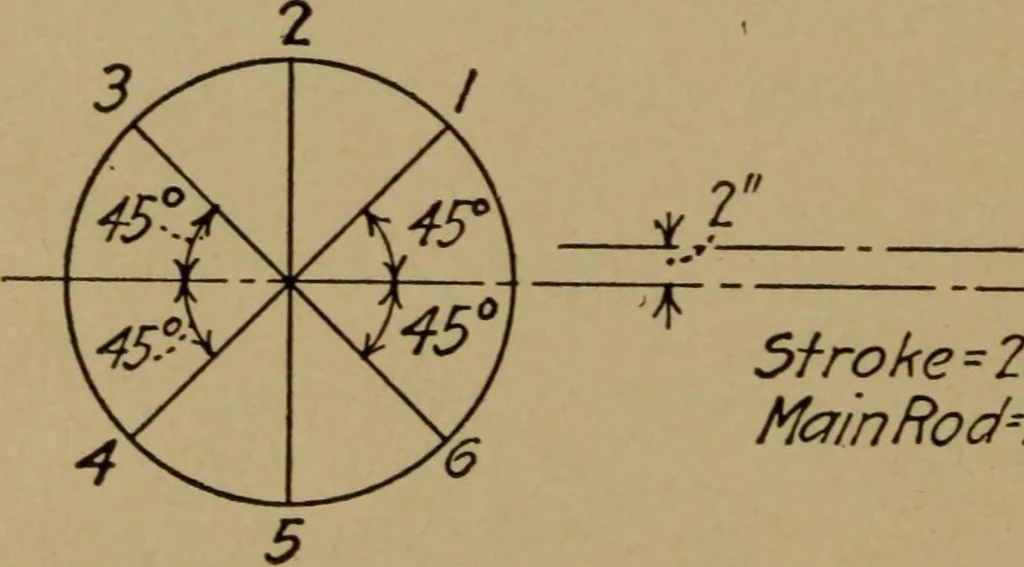

Fig. 153. segment or S to W is as 2 is to 7, thus W Find (1) the height and area of the steam segment; (2) the height and area ofthe water segment; (3) the net area of the water segment afterdeducting area of the tubes. 64. Determine the distance in in. between the center of the … McrlnRoc/-/25 Fig. 154. — Siroke-H -H 55//-. iSfr.^ cross-head and the center of the stroke or point A, Fig. 154,when the crank pin occupies the six different positions marked1-2-3-4-5 and 6. The center line of the cylinder is 2 in. abovethe center line of the axle. How would these distances be…
Mechanics, Applied
