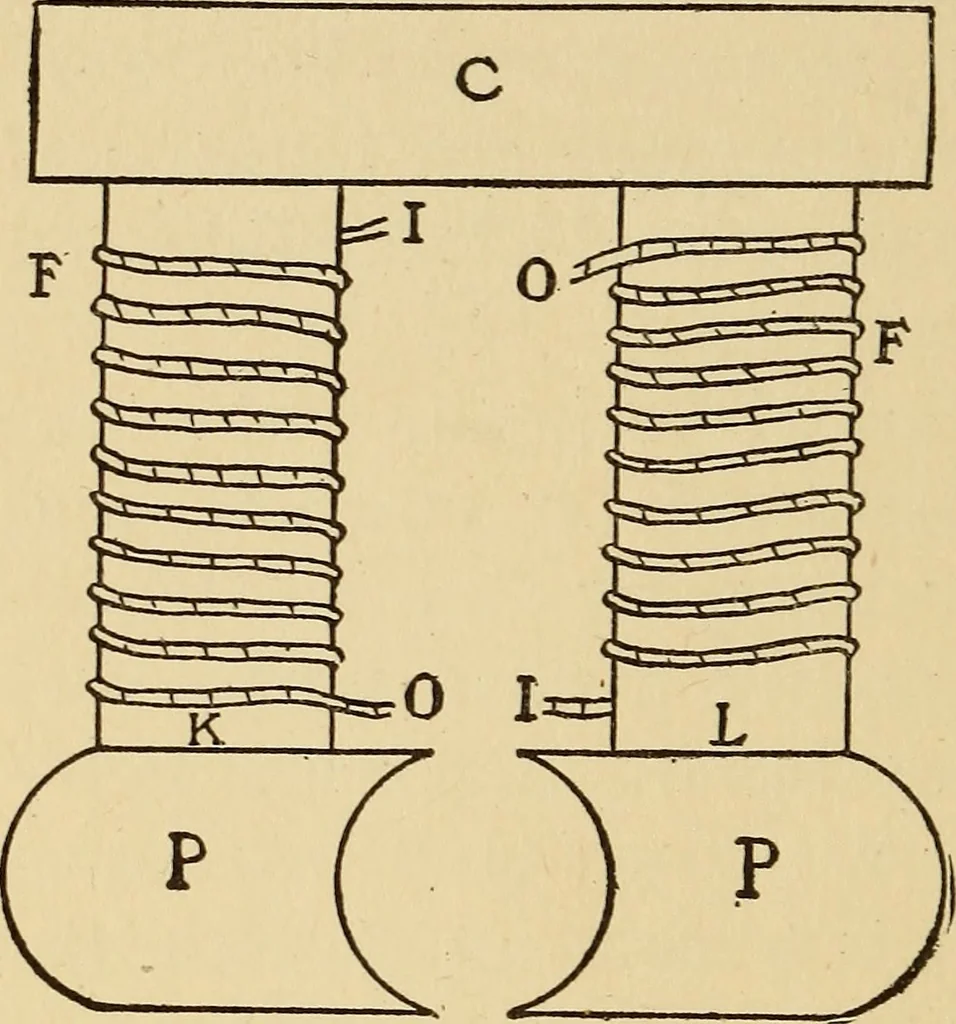

s shown in Fig. 20. Now, although this magnet appears to bein one piece, it really consists of five partsscrewed together so as to make, practically, 63 A-B-C OF ELECTRICITY one piece. The names of the parts are asfollows: F, F are the cores; C the yoke,which binds them together; and P, P the pole… … Fig. 20 amount of wire, which depends upon theuse the dynamo is to be made for. Thus,you will see, there will be on each core twoloose ends of the wire that is wound aroundit—namely, the beginning of the wire andthe end where we leave off winding, whichon the two cores together will make four…
