Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 99

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 99

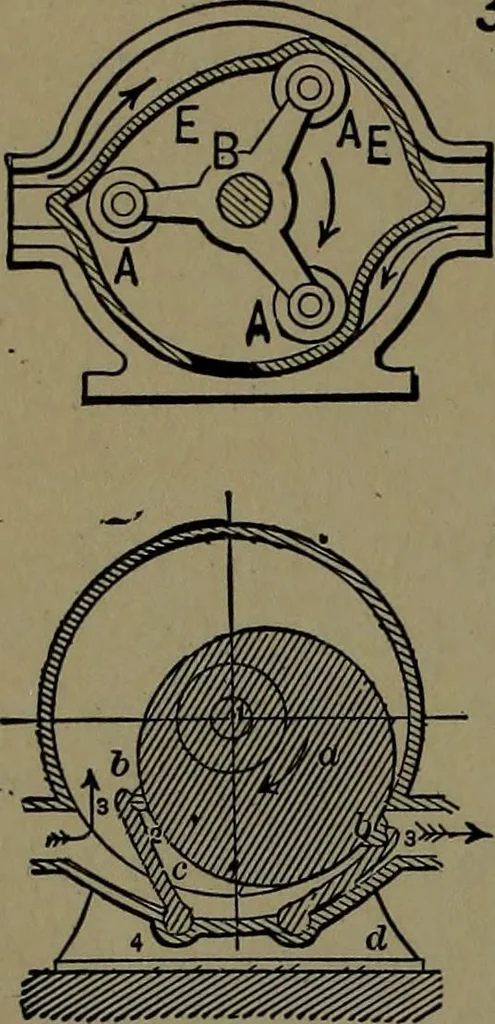

331. NAPIER ROTARY ENGINE.—An eccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting bars.There are two pair of ports. 92 STEAM POWER. … 332. ROLLER PISTON ROTARY ENGINE. A rubber lining loosely placed within the cylin-der is rolled over by the three-armed roller spider.E, E, rubber lining; B, spider on shaft; A, A, A,rollers. Z33. COCHRANE ROTARY ENGINE. —An eccentric cylindrical piston rotating on anaxis central to the shell. The…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
