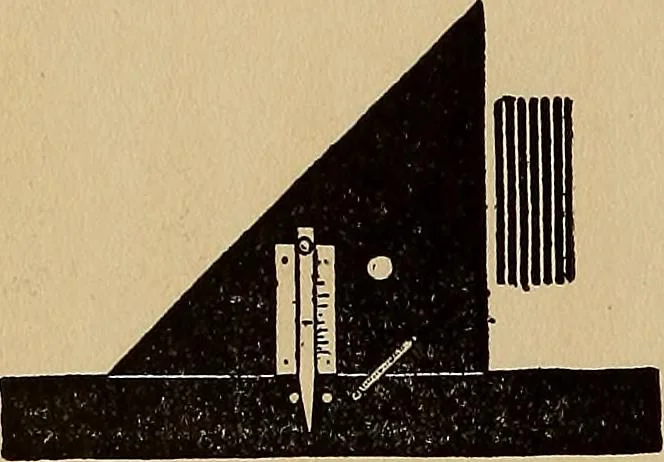

evidently be parallel to the first. The distancebetween the lines is regulated by moving thetongue in or out between the studs, as far as de^sired. Another form of section liner is shown in Fig.30, having a horizontal instead of a vertical ad-justment to regulate the width of the spacing. Beam… … Pig. 29—Section Liner with Vertical Adjustment. legs and pen, pencil and needle-points. The right-hand leg in the illustration has a horizontal ad-
