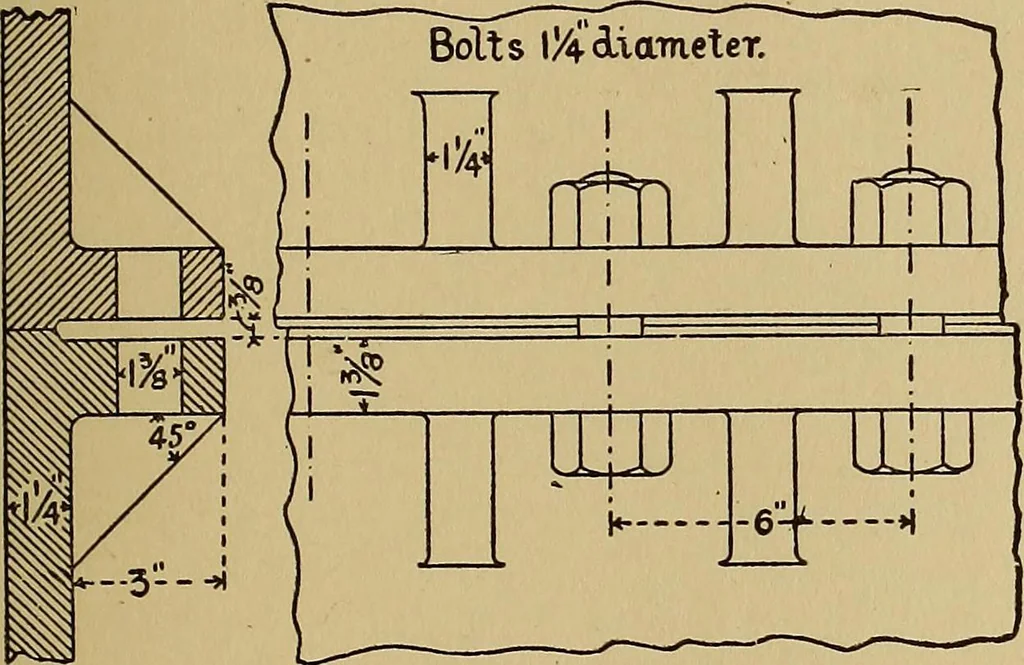

placed between and riveted to two angleirons which are riveted to the shell of the boiler. MACHINE DRAWING 81 A similar arrangement connects tlie other end ofthe stay plate to the flat end of the boiler. In thisexample the stay or gusset plate is % of an inchthick, the angle irons are 4 inches… … Fig. 161—Flanged Joint for Cast-iron Plates. right angles and riveted to the shell as shown.The radius of the inside curve at the angle of theflange is l^A inches. Draw this example to a scaleof 3 inches to 1 foot. Example 6. Flanged Joint for Cast-iron Plates.Draw the views shown in Fig. 161. Draw…
