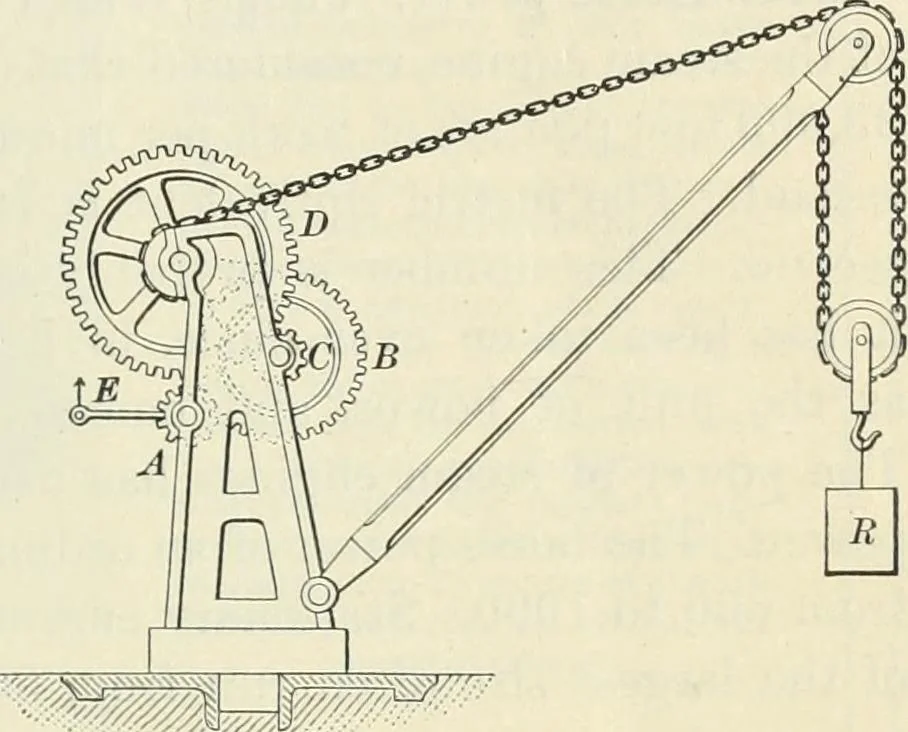

Fig. 138. llav .scales Fig. 139. Windlass with shears 6. The hay scales shown in Fig. 138 consist of a compound lever withfulcrums at F, F, F, F. If Fo and Fo are lengths of 6 in., FF andFE 5 ft., Fn 1 ft., Fm 6 ft., rF 2 in., and FS 20 in., how manypounds at W will be required to balance a weight… … 7. In. the windlass of Fig. 139 the crank handle has a length of2 ft., and the barrel a diameter of 8 in. There are 20 cogs in the smallcogwheel and 60 in the large one. What is the mechanical advantageof the arrangement ? 8. If in the crane of Fig. 140 the crank arm has a length of 1 m.,and the…
