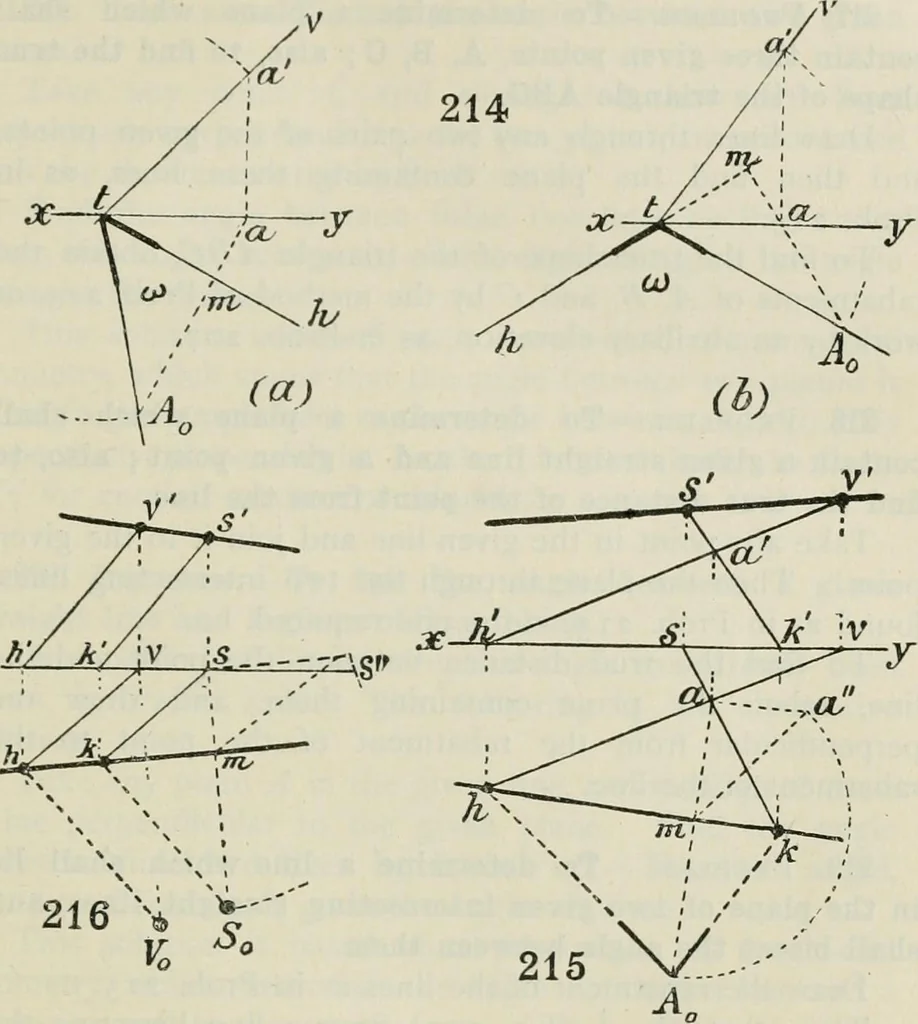

parallel straightlines, to determine the plane containing them; also, tofind the true distance between the lines. Let the given parallel lines be as shown in Fig. 216.Their plans and elevations are respectively parallel. Determine the traces of the lines, through which drawthe traces of the… … 216 \ *T V0 *° Examples.—1. Determine the true angle between the traces ofeach of the planes of the example on page 233. In each casedraw the projections of the bisector of the angle between thetraces. Also, draw the projections of a line equally inclinedto the traces and such that the part of the…
