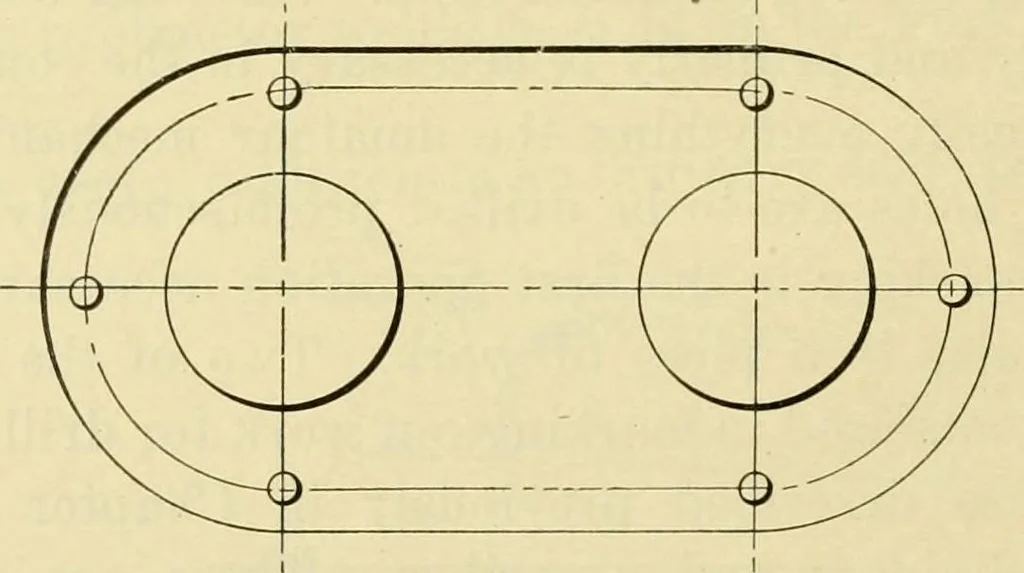

Fig. 124—A pair of dividers and scriber used in marking out work inch, and witli one leg placed on the edge of the plate andthe other leg in contact with the top surface, the line C … Fig. i2^—Method of marking out for holes to be drilled is drawn all the way around. Distances for the smallholes around the edge are then marked off and an inden-tation is made at the proper point with the prick-punch.The dividers are then used in drawing the small circlesshown at the point where…
