A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations and colour (1879)
Ashenhurst, Thos. R. (Thomas R.) · Bradford : T. Brear ; London : Simpkin, Marshal · leaf 78

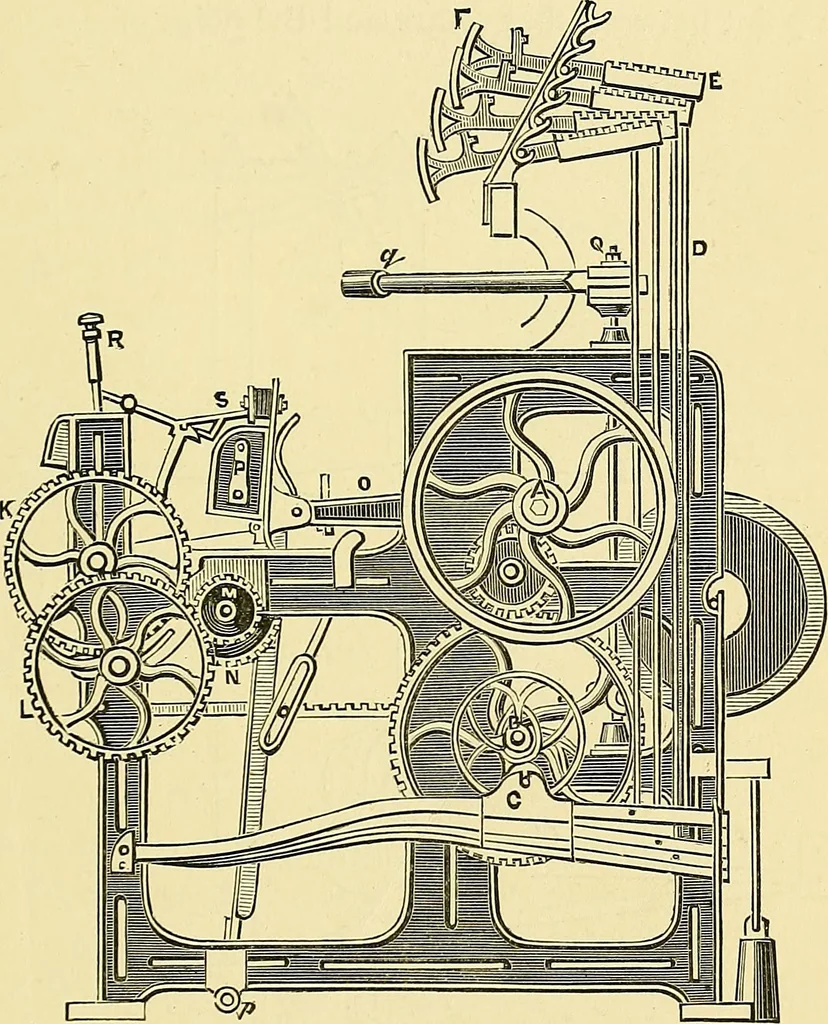

lation to the crank shaft according to the arrangement ofthe picking tappets, and the shedding tappets must revolveat a speed proportionate to the number of picks in a com-plete round of the pattern. OF TEXTILE FABRICS. IZ We will, first of all, commence with shedding for aplain cloth. The end… … Fiz- 12. shedding motions to be at the side of the loom, as beingthe most convenient for illustration). From the end ofthese treadles are connecting rods D to lever arms E, whichare fixed upon shafts or rods, working in stands over thetop of the healds. Upon each of these shafts are alsoaffixed a…
Textile fabrics · Textile design · Weaving
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
