A practical treatise on weaving by hand and power looms; intended as a text book for manufacturers by hand and power looms, and power loom engineers .. (1846)
White, George · Glasgow, J. Niven · leaf 131

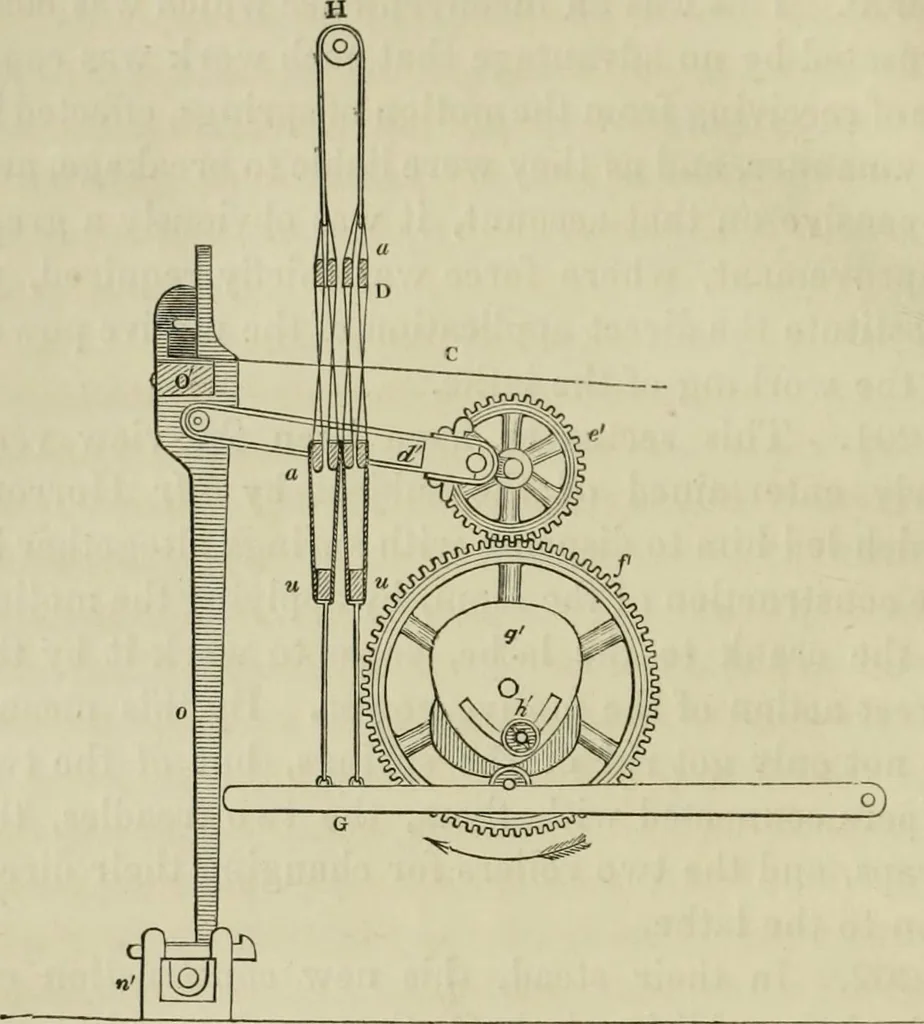

ete the stroke of thelathe, or its motion to and from the fellj and as theshedding wipers are constructed on the semicircle,two shots make the circle, and therefore the crankshaft revolves twice for once of the wiper. This iseffected by the relative sizes of the two wheels;that of the crank is… … Fig. 43. Section of Moving Parts of the Crank Power Loom,without the Frame. it has superseded the Wiper, and is almost the onlyone in use, it is the one with which we have espe-cially to deal in the further consideration of powerloom weaving, o, d\ e^fy refer respectively to thesword of the lathe,…
Weaving · Looms
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
