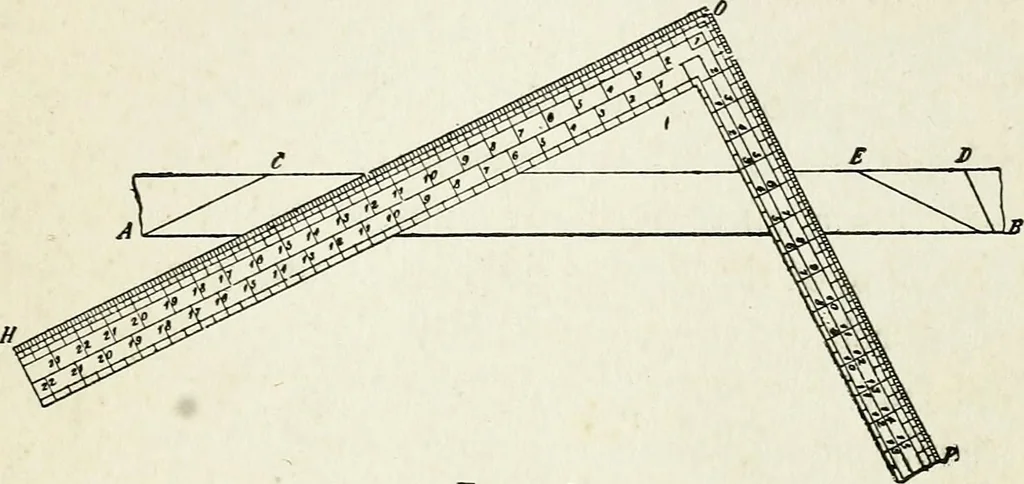

t flat footand the line EC the plumb cut. This is quiteplain. The building may be any width, let ussay in this case, that it is 30 feet wide from Ato O. That will make the distance from A to C15 feet. A method of obtaining the bevels for thisrafter is given in Fig. 138 where the steel squareis… … Fig. 138 rafter AC, as shown both in Figs. 137 and 138.The line OP, Fig. 138 gives the bevel for the topof the rafter or the plumb cut, as most workmencall it. Now, there is nothing in this diagram,which is from Bells Carpentry, an excellentwork,—from which the workman can get thelength of his…
