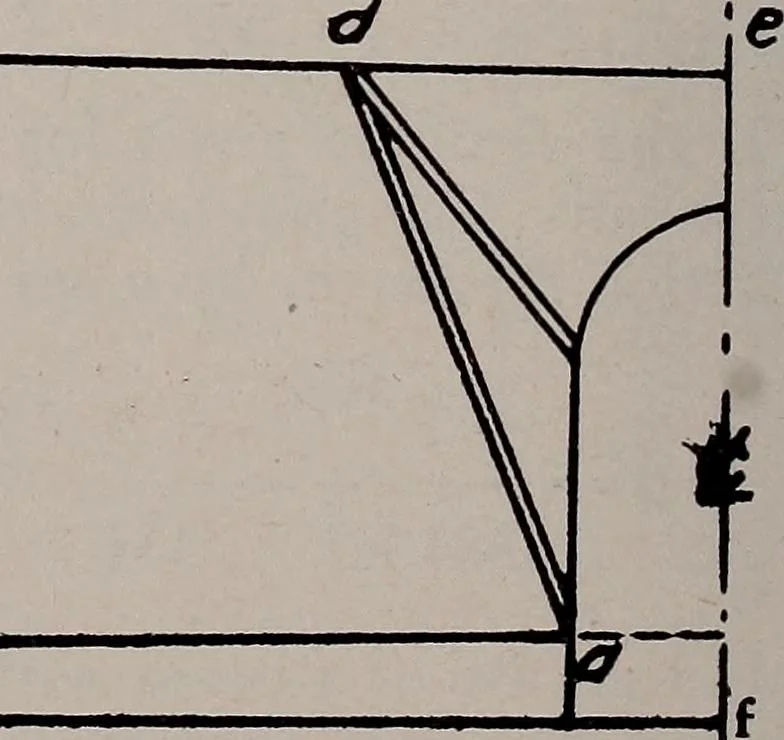

oint, and determine the deflection of each beam at this point due to theunit load. 4. The relative deflection of the beams of either truss at the strutpoint produced by the distributed load, divided by the numerical sumof their deflections due to the load of unity equals the value of the stressin… … Fig. 180 276 Art 173 Determining Deflection of Beams with Varying Load and Section 6. Figure the resultant forces acting on each spar at the N strut andcorrect the total bending moment in the spars by the moments due tothe forces. There are several designs that have been built or proposed in…
