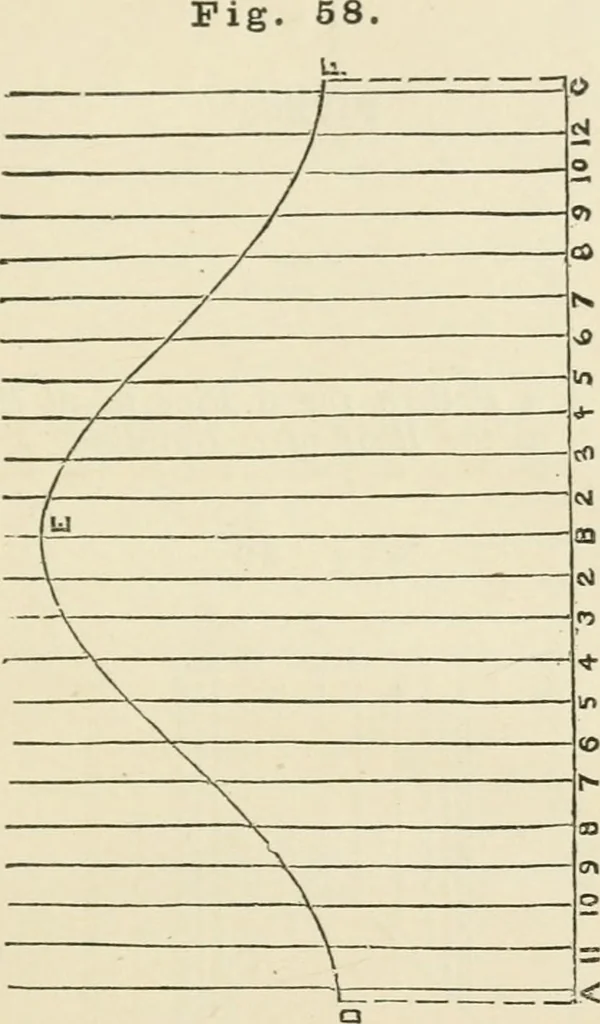

Let AB, fig. 57, equal the angle of the roof of a building; let,IE, FB equal the pipe; draw the line CE; describe the semi--ircle CDE; divide the semicircle into any number of equal parts;from the points draw lines parallel to EB, as 2, 8, 4, &c, FOR DESCRIBING PATTERNS. 59 … ■zzi< Then set off the line ABC, fig. 58, equal in length to the cir-cumference of the cylinder CE ; erect the perpendicular lines AD,BE and CF; set off on each side of BE the same number of equaldistances, as in the semicircle CDE; fcom the points draw linesparallel to BE; make BE equal to BE ;…
