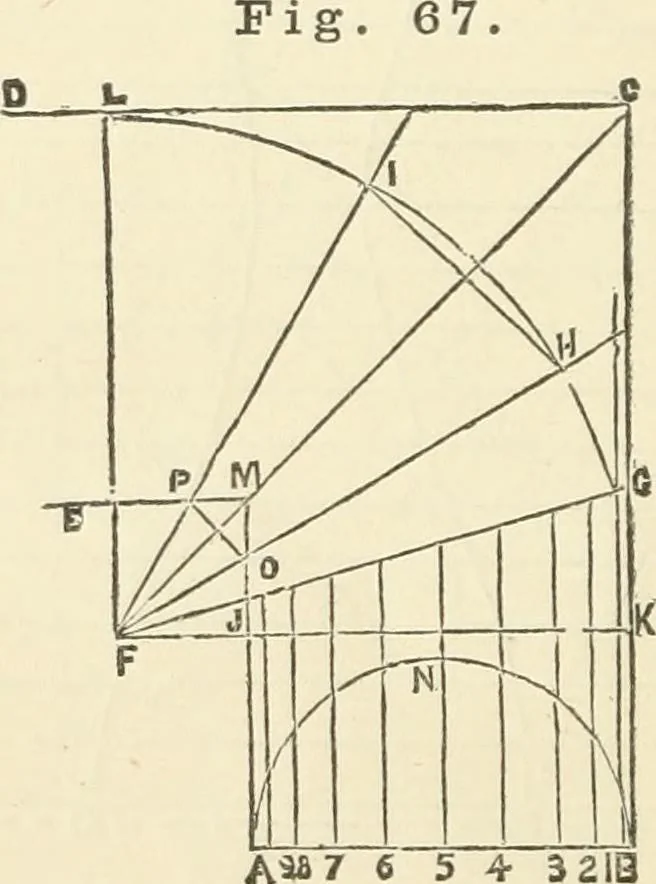

oints draw lines parallel to BH ;make BH equal to BH; make AD and CE equal to AN; also, eachof the parallel lines beairing the same number as 1,1, 2, 2, 3, 3, &c.;then a line traced through the points will form one of the sections;make DF and EG equal to EJ; then reverse section No. 1, andplace… … Aaay 6 5 4- 3 21 Let ABED, fig. 67, be the given elbow; draw the line FC;make FM equal in length to one-half the diameter of the elbow,with F as a centre ; describe the arc KL ; divide the arc KL intothree equal parts; draw the lines FH and FI; also the line IH di-vide the section HK into two equal…
