The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 126

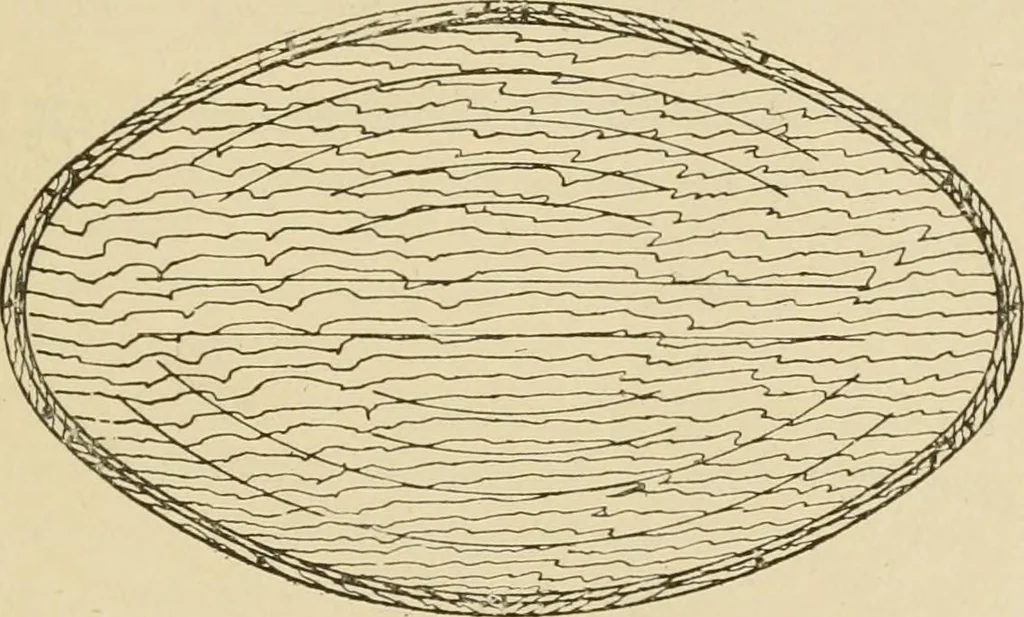

e irregular outlines, turn-over boards are oftenemployed. One portion, usually one-half the pattern,is laid upon the bottom board, the drag part of themoulding box put over it, and rammed up and turnedover. The bottom board keeps the pattern true, andforms the joint face of the mould. This face is… … Fig. 87. A Name Plate ready for Lettering. The patterns of name plates are made in all sizesand forms, usually of wood. A thin piece of wood isplaned and cut to the outline required, and filleting isglued or nailed around the edges. Lines are drawnupon the plate, and letters of lead or brass are…
Patternmaking
