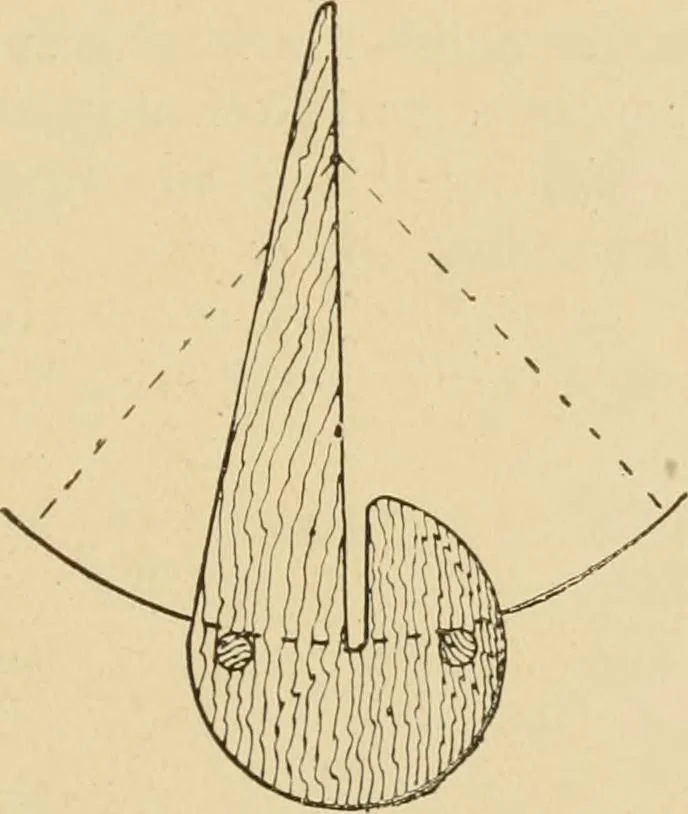

, and the 4| (Is. M.).Set squares of wood are made by the workman to TOOLS. 19 angles of 45°, and of 30° and 60°, respectively. Theseare in constant service. A sliding bevel (2s. 6d.) canbe set to any angle by means of a protractor, andemployed for planing edges and ends. A centre square(Fig. 4),… … Fig. 4. Centre Square. pattern makers hammer (Is. 6d.), a mallet, made by theworkman, two screw-drivers (Is. 6d.) and (10d.), and apair of pincers (Is. 6d.), complete the kit of the patternmaker. The selection of tools given in the foreg ing list isan average one. Thus, a youth on going to the…
