The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 59

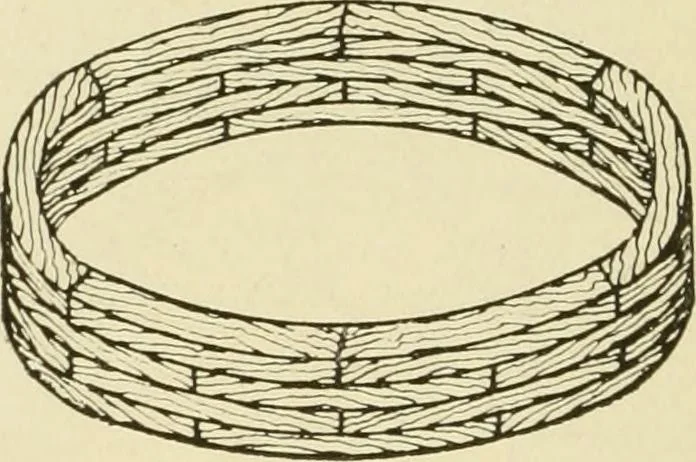

glued and nailed, orscrewed, Fig. 30. Note how all these are put on inshort pieces, in order to prevent very short and conse-quently weak grain from occurring in any part of thepattern. The result is a pattern of a rather flimsy type,constructed with the maximum of strength possible. Ihave… … Fig. 32. Example of Building up with Segments. construction. It is termed building up with segments.Light circular and curved work is usually made in thisfashion. A number of thin, short segments are sawnout, and glued in courses, one over the other, with theend joints alternating, or breaking…
Patternmaking
