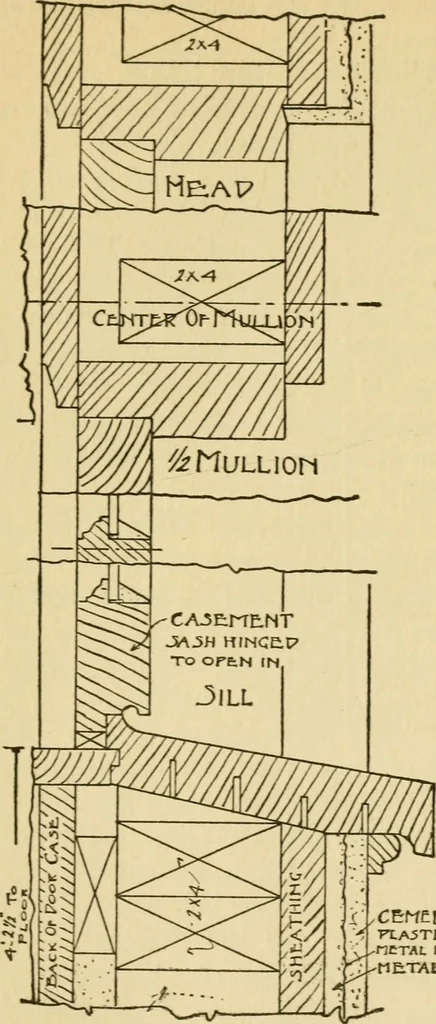

ARCHITECTUEAL DEAFTING 293 … CEMENT •PXA5TEjrnriTAL t-ATH Fig. 76. Details of Casement Window. 298 ARCHITECTUEAL DRAFTING brick wall, although the same detail will applyto a frame wall. In Fig. 71 we have the details and dimen-sions for a double-hung window in a frame wall,the exterior of the wall being plastered. In Fig.72 we…
