Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 95

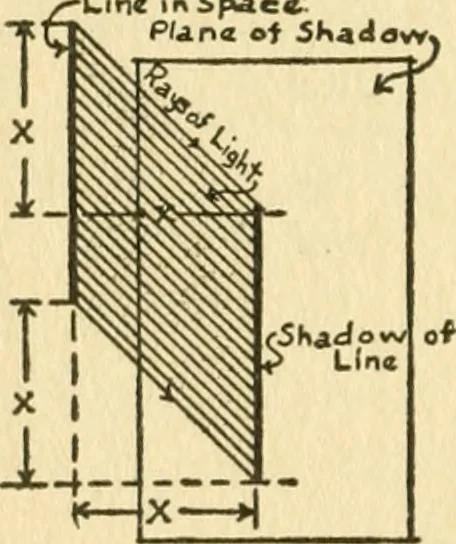

of a point is where the ray oflight surrounding the point intersects the planeupon which the shadow falls. In Fig. 28, wesee the light surrounding the point, and inter-secting the plane, giving the shadow of the pointupon the plane. The shadow is located as fardown and as far to the right of the… … Fig. 30, Elevation of Line andSbadow. PJant. of 5Kado»v\ ... I X Line m | ■ Fig. 31. Plan of Line in Spaceand Plane. Shadow of a Line Parallel to Plane of Shadow. The shadow of a straight line in space is theintersection of the light surrounding this linewith the plane of shadow. By casting the…
Architectural drawing · Architecture
