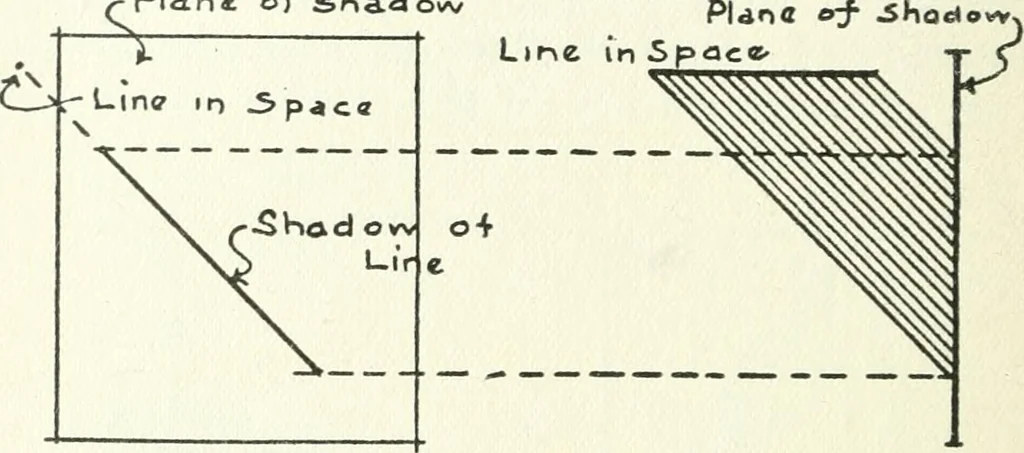

ace is upon which the shadowfalls (see Figs. 34, 35, and 36). The shadow of a straight line parallel to theplane upon which the shadow falls, is an irregu- 264: ARCHITECTUEAL DRAFTING lar line giving the true outline of the surface(see Fig. 37). The shadow of a perpendicular line on a roofis… … P^ONT ElEVATTioM .Sioe. Fig. 34. Fig. 35. Shadow of a Line which is Perpendicular to lane of Shadow.
