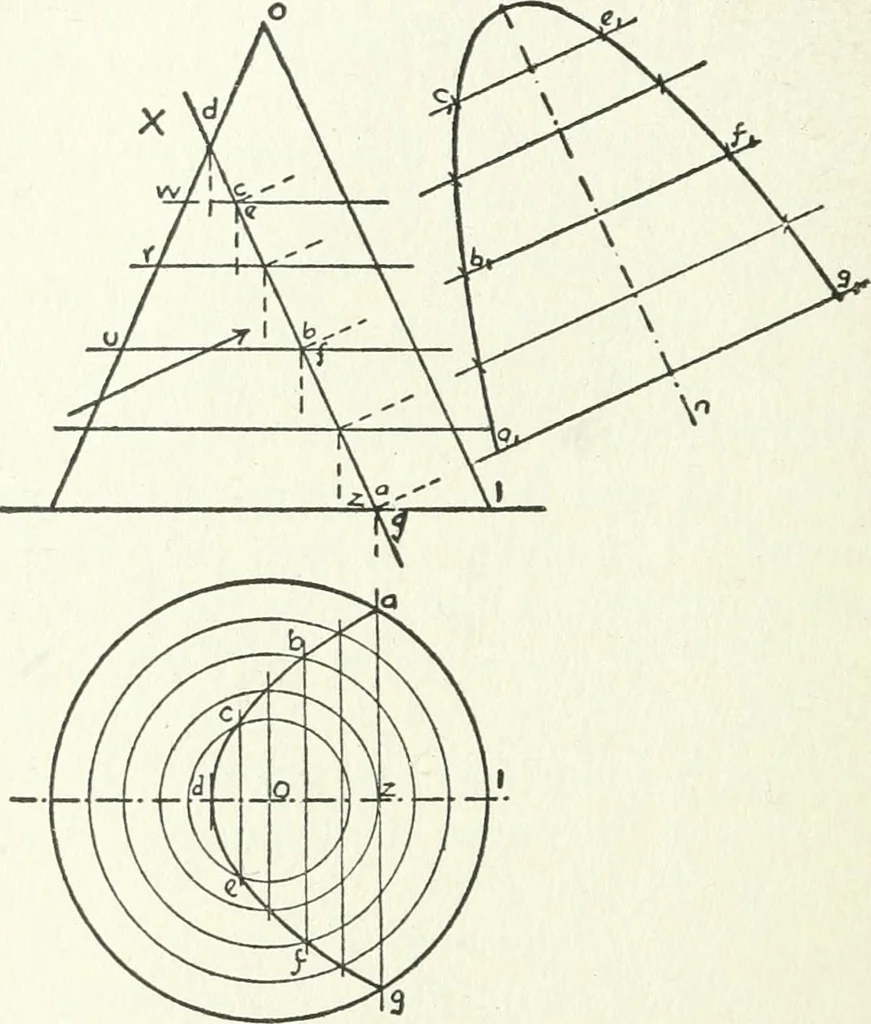

The highest pointc is first determined as in Fig. 68. Other planesbetween Z and the base are then taken. LetW be one such plane. Plane W cuts a circlefrom the cone, the diameter of which is x-y. Acircle with this diameter may then be drawnin plan, intersecting plane Y in points b and d.These points… … Pig. 71. Cone Cut by Plane Parallel to One Element, Giving CurveKnown as Parabola. Very often this method of construction isbetter than that of Fig. 68, on the score of accu-racy. By referring to Fig. 68, it will be seenthat, owing to the steep inclination of elements0-3 and 0-5, when b and d are…
