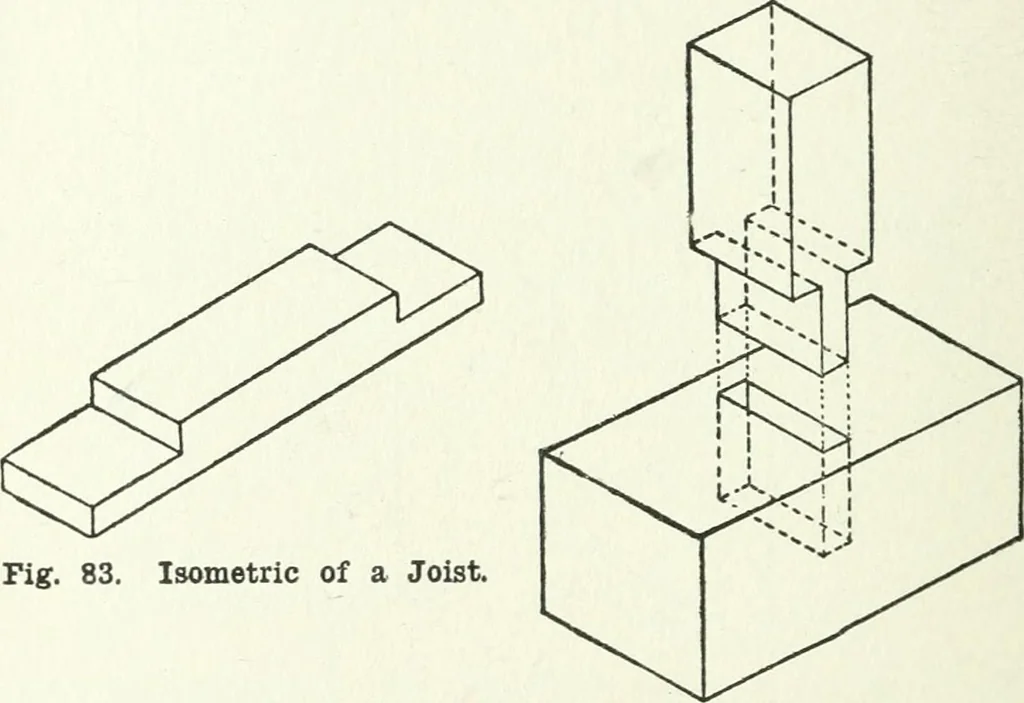

Fig. 84. Isometric Drawing of Post and Sill, Showing Mortise and Tenon. narily the dotted edges are omitted. All of theedges in this figure are full-length, and areeither vertical or at 30 degrees with a hori-zontal. The drawing represents the cube in theposition of Fig. 82, with the view taken in…
