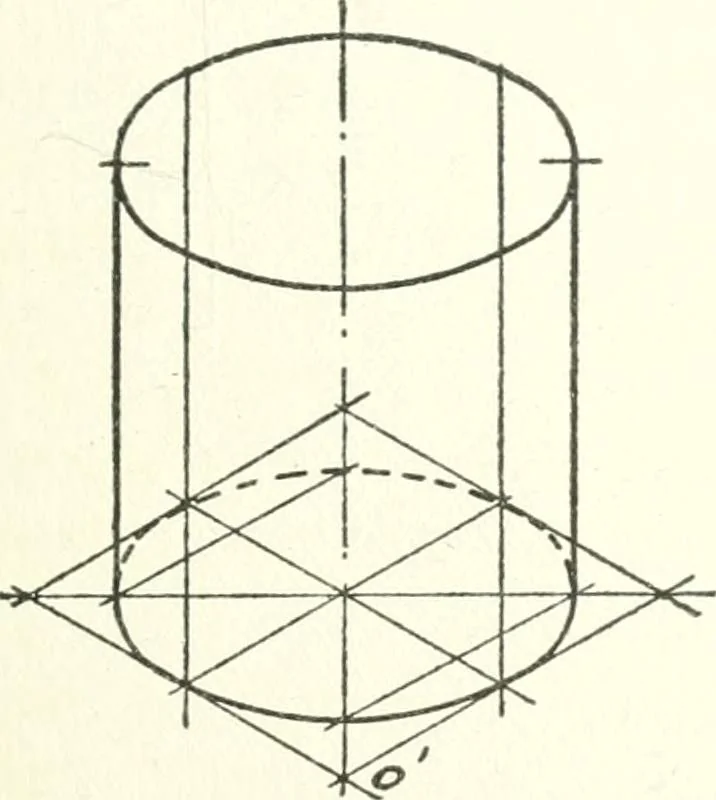

cumscribe a square about thecircle, with the sides respectively parallel andperpendicular to a T-square line. As this is a MECHANICAL DEAFTING 135 plaia of the cylinder, the sides of the square willbe 30-degree lines in isometric. Let 0 be placed at 0, and the isometricsquare drawn. The circle of…
