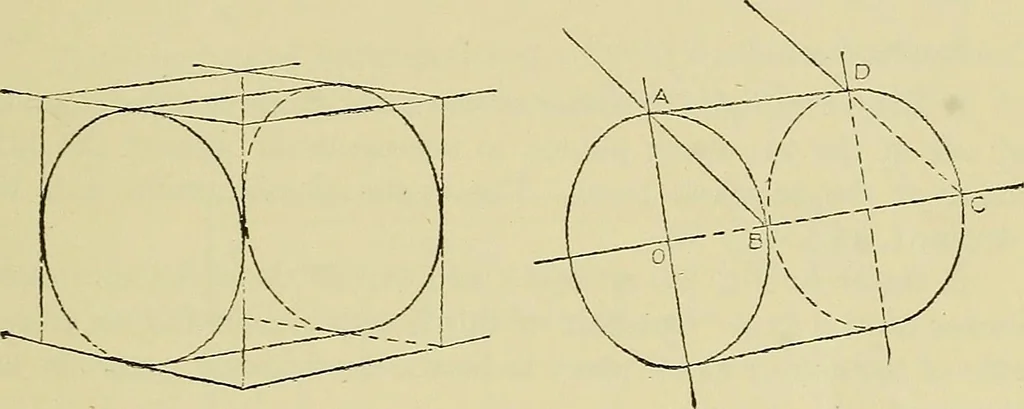

e similar to Figs. 47 and 48, respectively,but show a horizontal cylinder at a different level, with its axisreceding to the right instead of to the left. 1. Since the axis of a horizontal cylinder in 45° perspectivealways extends toward a vanishing point, the inclination of theaxis indicates the… … Fig. 49. Horizontal CylinderInscribed in a Measure Cube Fig. 50. Horizontal MeasureCylinder 3. The major axis of the nearer base is equal in length to thediameter of the cylinder, or one inch. The major axis of the far-ther base is shorter, on account of the convergence of the contourelements of…
