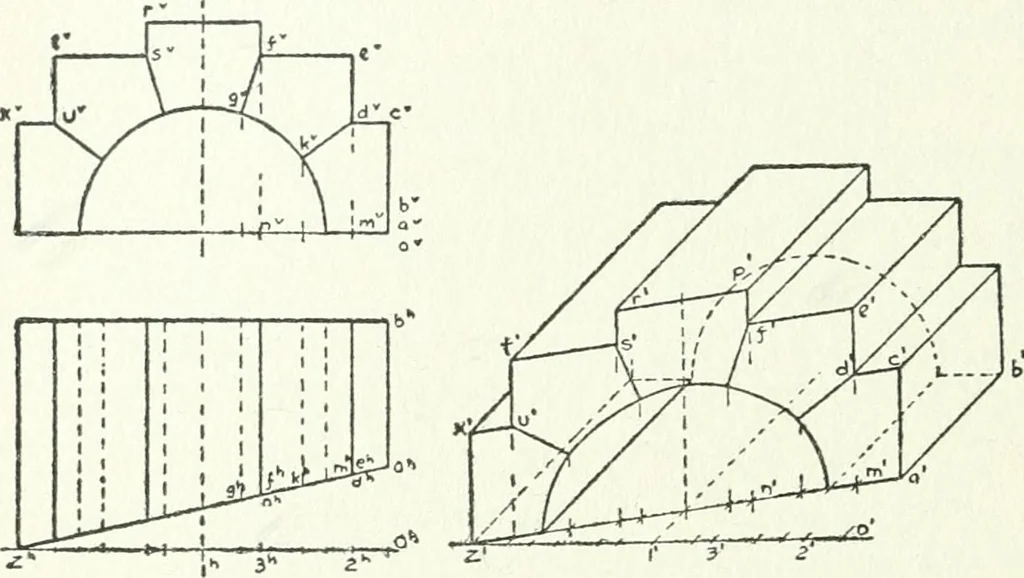

side. 129. A short piece of moulding is repre-sented by oblique projection in Fig. 96. Thecurves of both the front end and the back end,are shown in their true size and shape. From 140 MECHANICAL DEAFTING such a drawing, a plan and elevation mightreadily be constructed. 130. An arch with a skew… … Fig. 97. Arch with Skew Face. a^-z^ is not horizontal, it will not be shown truesize in the oblique projection, and the variouspoints must be determined by co-ordinates.First draw through z a horizontal line, andproduce a^b* to meet it at o, and take the posi-tion of o at 0 for the oblique…
