Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 344

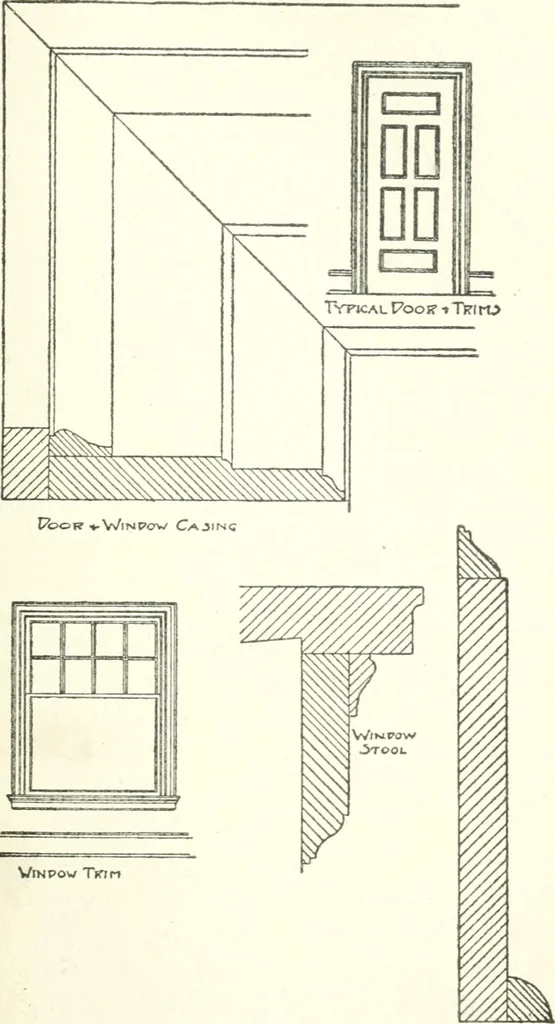

t. We have shown a half exteriorview, a half interior view, and a section. Fig. 76 shows the details of a casement win-dow in which the head, muUion, and sill, withall adjoining construction, are shown. Noticethe grounds or guide for the plaster work, asspoken of under Lath and Plaster. Fig. 77… … rig. 77. Details of Window and Door Trim, 298 AECHITECTURAL DEAFTING to the grounds, which are set to serve as guidesfor the plasterer, and which should be placedback of all interior finish. The base shown isthe finish at the floor-line. The base is nailedto grounds; and the quarter-round mould at…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
