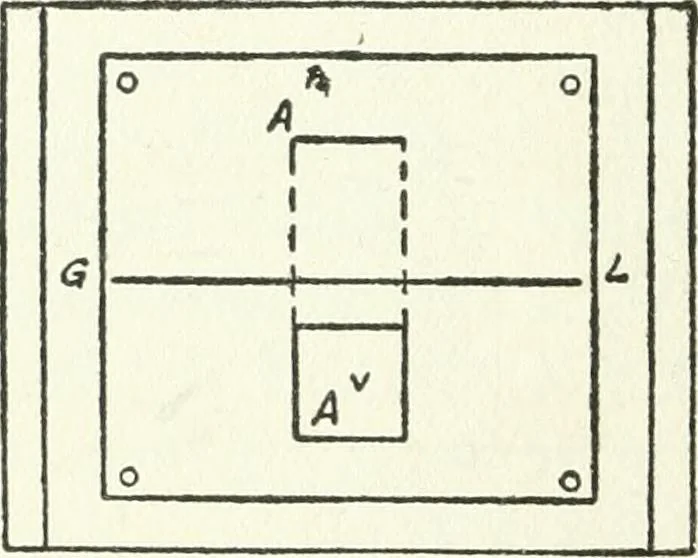

^ object ineither the second or third angle would be pro-jected on the further side of GL. The actual plan and elevation of the square … o 1 4 27 3 O a o 1 5 2 i 7 0 A 6 Fig. 43. Illustrating Principlesof Projection. Fig. 44. Projections of Cube inThird Angle. shown pictorially in the preceding figure maynow be made. A straight line A* parallel tothe V plane and on the further side of V, willbe the H projection or plan of the…
