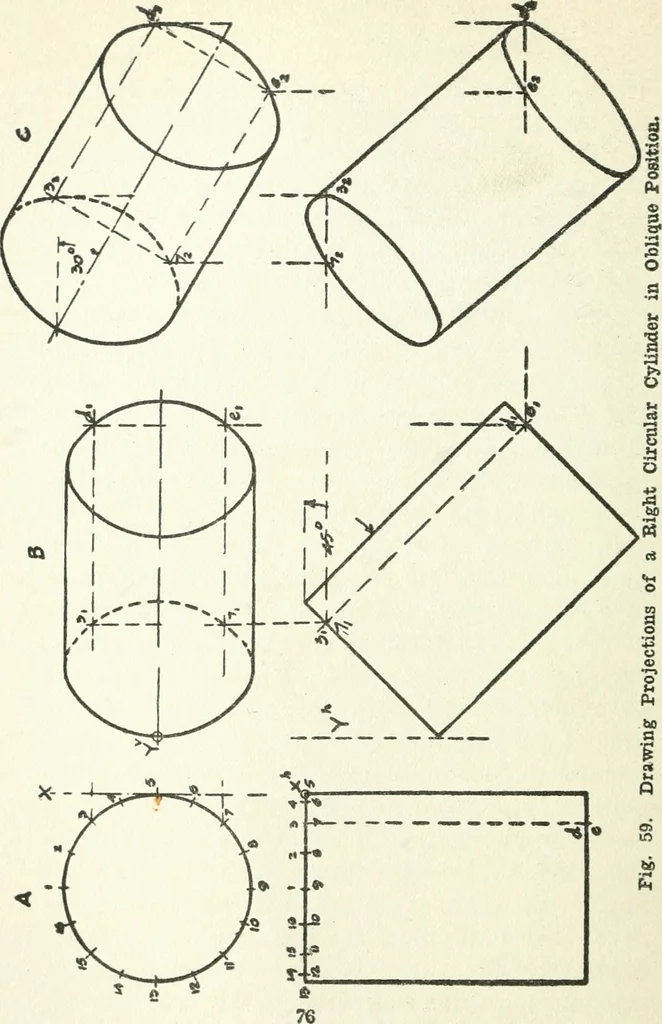

45 de-grees with the vertical plane, its V projectioninclined at 30 degrees with H; and let thecylinder slope downward, forward, and to theright. First, note with which co-ordinate planethe axis is to make the given angle. In this case,the given angle is 45 degrees with V. Thendraw the cylinder in… … MECHANICAL DEAFTING 77 through any convenient point, as 5 on the backend, the cylinder may be revolved until it makesthe required angle of 45 degrees with V. in thisrevolution, the cylinder will remain parallel toH, and its plan will be unchanged in size andshape; hence, in B, the plan of A is…
