Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)

Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 165

An illustration from Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work, 1909, leaf 165

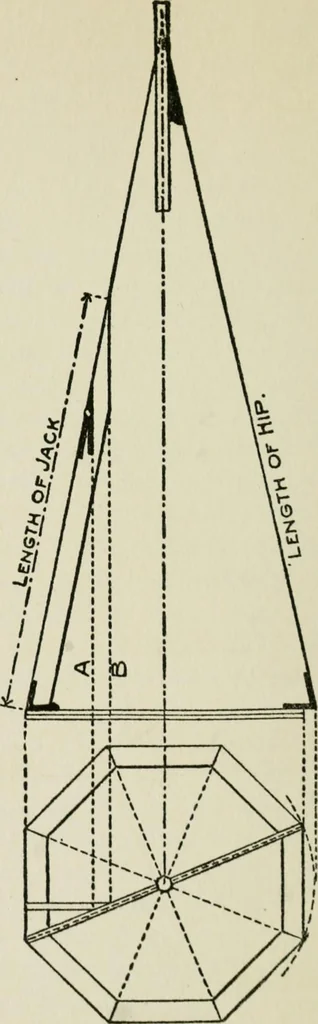

stjack. Divide half thesquare width of octa-gon by 3 to find therun of shortest jack.Just as the square islaid on to find thelength of a jack, itgives the down andlower end bevels; whilethe side bevel is ob-tained by taking thelength of the middlejack on blade and halfone side of the octagonon the… … FIG. 159 PRACTICAL CARPENTRY 143 roof. The seat and plumb cuts are found in theusual way of taking the proportion of the run andrise on the tongue and blade, but there must be an
