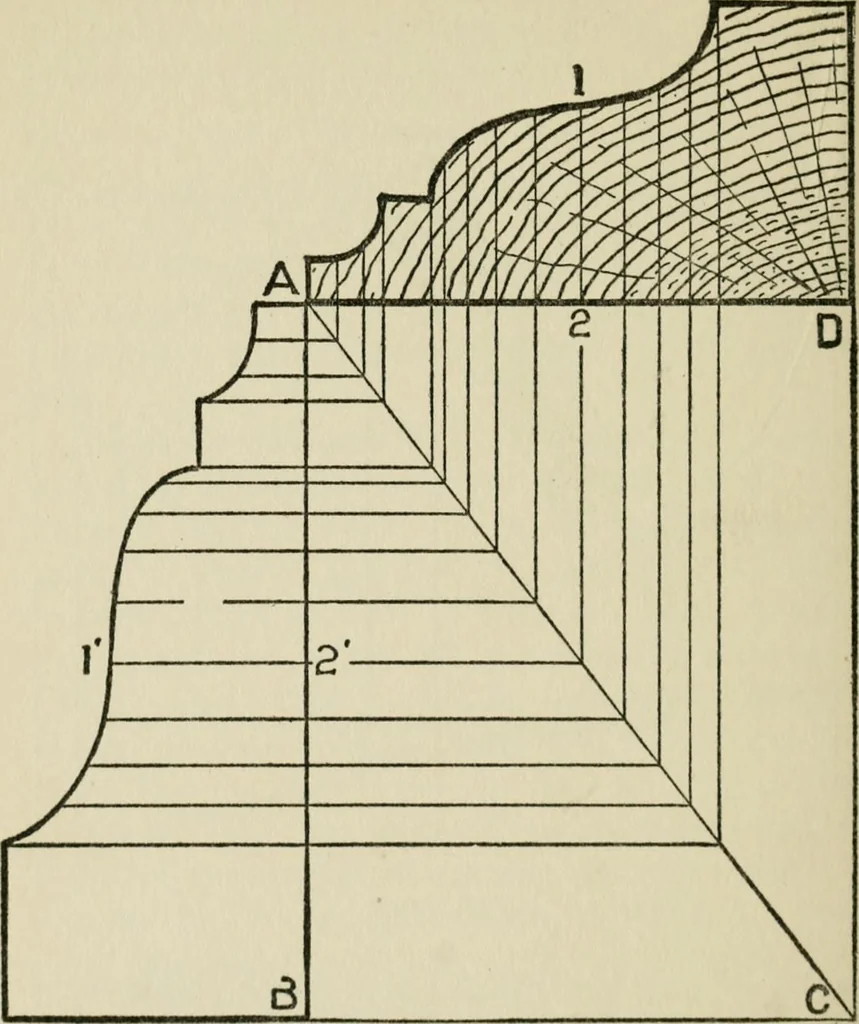

FIG. 187 to BC cutting the line AC, from which points drawlines parallel to DC and beyond the line AD.From the latter set off the thickness of the mould-ing on the corresponding Hnes as 1-2 will give thecontour of the mould for the lesser width or viceversa. 244 PRACTICAL CARPENTRY To Obtain… … FIG. 188 gothic jamb. E shows the horizontal sill^ ef thesplay, FA the line of the inside of jamb, o thedifference between front and back edges of jamb, PRACTICAL CARPENTRY 245 BA the line cf splay. At the point of junction ofthe lines BA, FA, set one point of the compasses,and with the radius AB…
