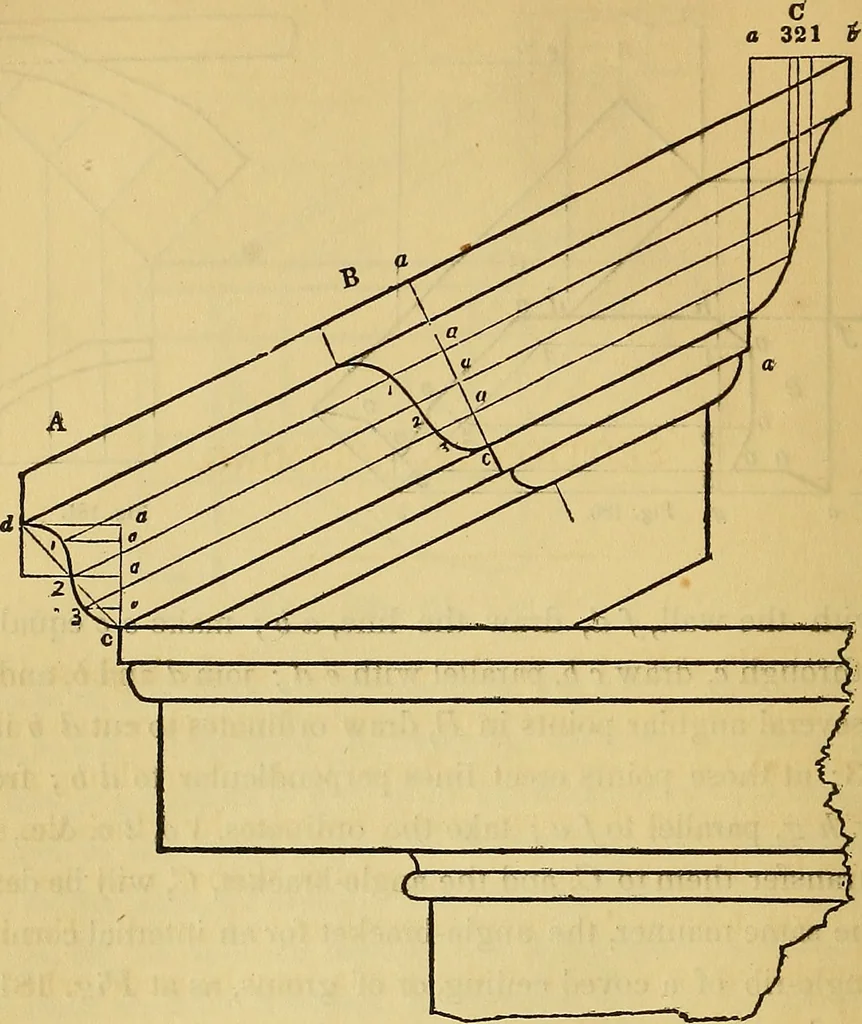

enient placeon the rake, as at B, draw a c, at right angles to ^ 6 ; also, from5, draw the horizontal line, ha; place the thickness, d «, of themoulding at J., from b to a, and from a, draw the perpendicularline, a e ; from the points, 1, 2, 3, at A, draw lines to C, parallelio Ah ; make al, a 2… … Fig 182. 3, at C, drop perpendiculars to the corresponding ordinates from?1, 2 and 3, at A ; through the points of intersection, trace thecurve—this will be the proper form for the return at the top. SECTION IV.—FRAMING. 247.—This subject is, to the carpenter, of the highest impor-tance ; and…
