Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 205

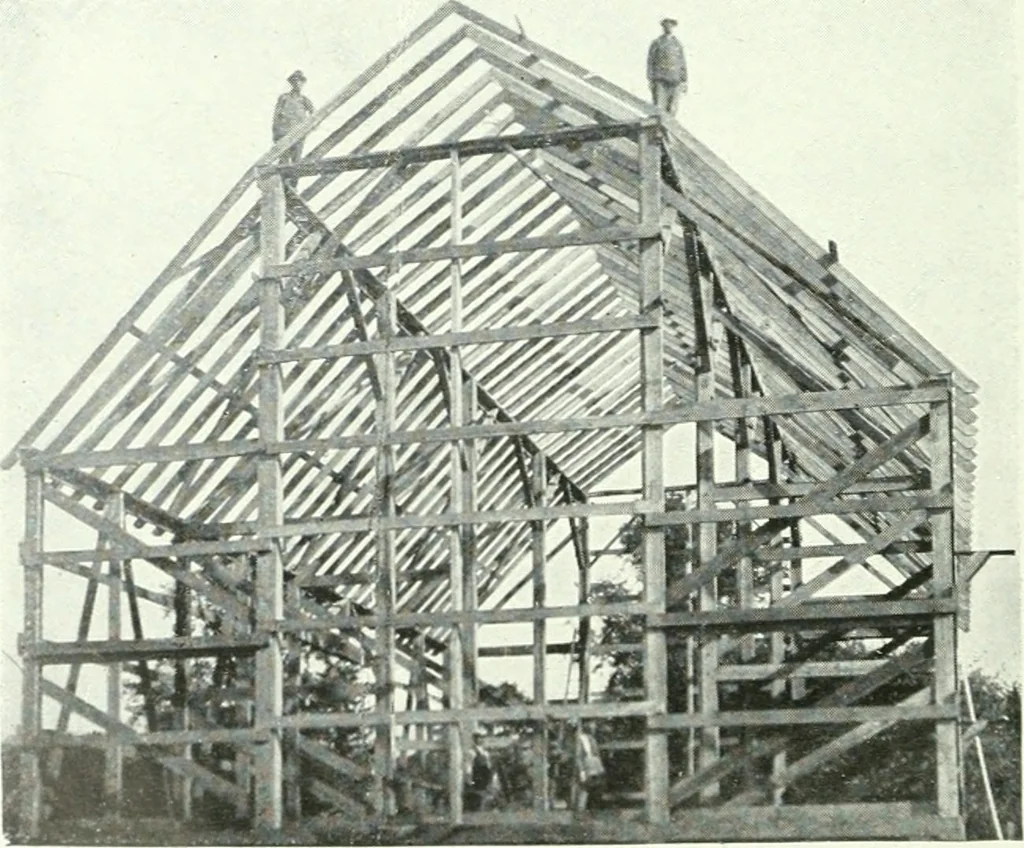

PLANK-FRAMED BARN MORTISED AND TENONEDTHROUGHOUT. Dimensions, 46 by 74 ft.; height from floor to plate, 18 ft. Barnhas two floors and two mows, with stables underneath. An addition,21 by 30 ft., contains corn cribs, on each side of a central floor. … PLANK-FRAMED BARN WITH UAMBREL ROOF. Outside rafters framed at one-half pitch; comb rafters, at one-third pitch. FKAMING 177 brickwork first, before backing-up of the con-crete. All measuiements must be carefullywatched so that the sills, lintels, bond courses,etc., may be at their proper heights…
Architecture · Building
