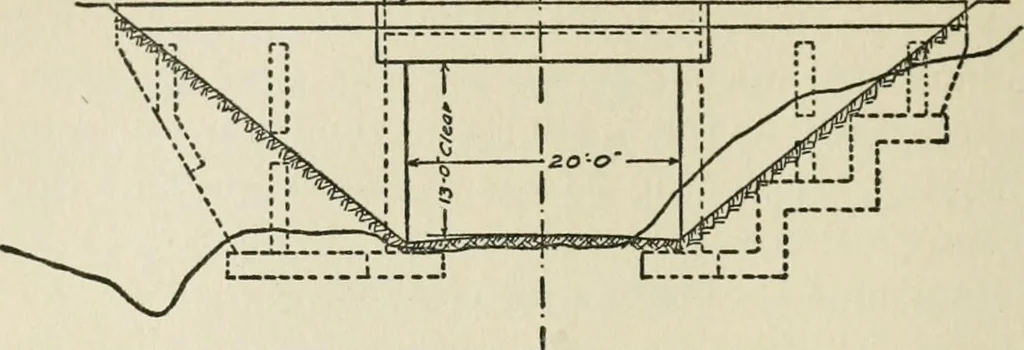

arapets do not carry any of the load. In Fig. 45 is shown a girder bridge recom-mended for spans up to 50 feet. In this typethe load is carried to the abutments by means ofthe side girders, which also serve as parapets orrailings. The floor slab spans between thesegirders. Plate 6 (A and B)… … Ele-v/ktion -L-T-r +: ._._.! \. -t-ij-i. -1----^- ■»■—T Plan Fig. 46. Typical 20-Foot Slab Railroad Crossing over a Highway.
