Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 178

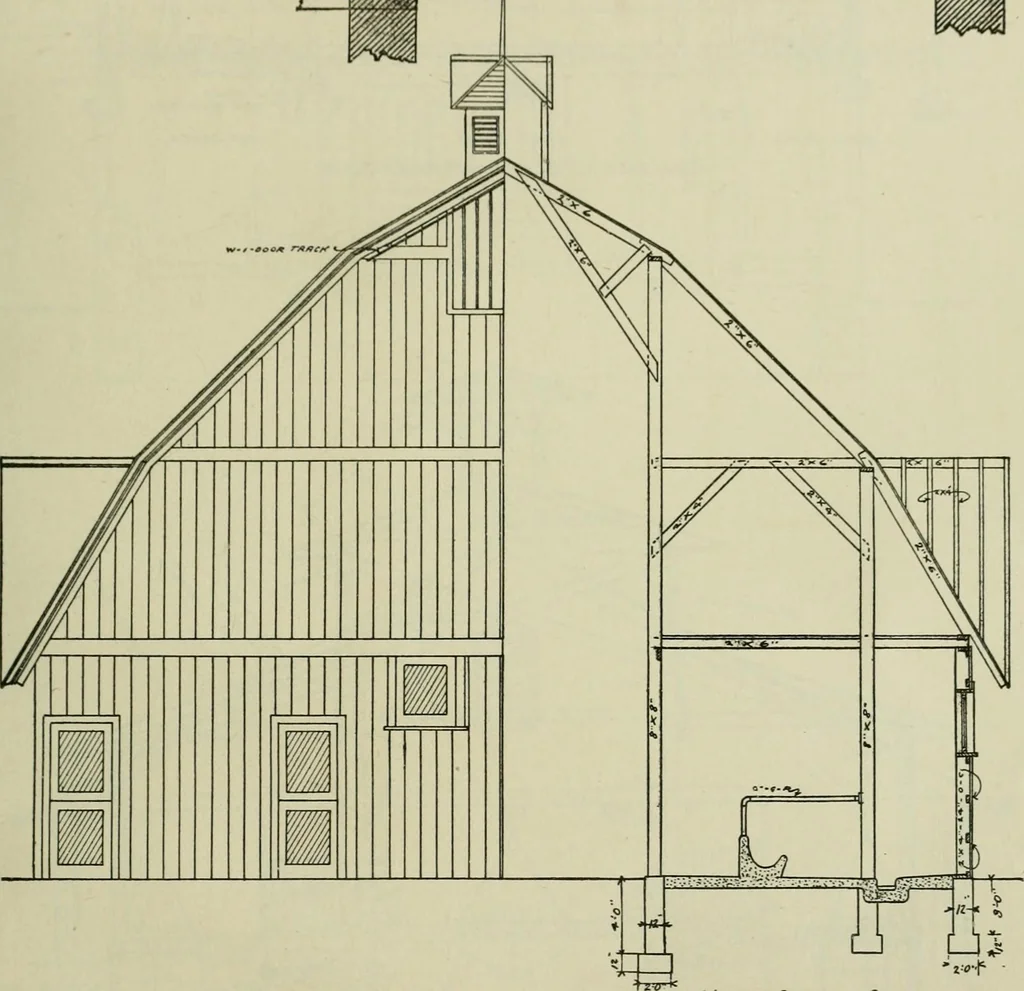

p: /fair tiecjj j£cr/a/Y. Afar /lfJ//777ay-J&¥P. PLATE 164—LARGE BARN WITH DOUBLE GAMBREL ROOF Cross section showing details of constructionof barn 65 feet long, 48 feet wide, 13 feet high atthe plate and 30 feet high at the ridge. Thedouble gambrel roof gives the maximum amountof hay storage…
