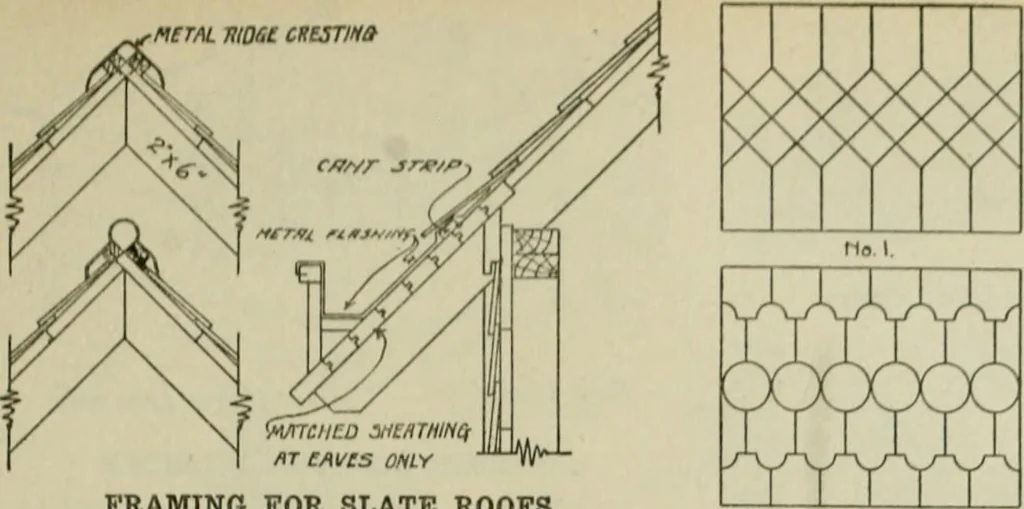

MOTH-PROOF CEDAR CHEST Elevation, plan and section of a well madecedar chest. The overlooking lid joint keeps outdust, and the aromatic odor of the wood will keepthe moths away. The interior of the box shouldnot be varnished or oiled. PLATE 175—USEFUL DETAILS FOR BUILDERS rMCTAL nwi cKtswa … FRAMING FOR SLATE ROOFS Roofs to be covered with slate should beslicit lied with Bttrfaeed boards from six to teninches wide, the sheathing at the caves to bematched lumber. For rafters 18 feet long, set 2feet, from centers, 2 by 6 pieces arc strong enoughfor a slate roof. Three-penny galvanized…
