Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 83

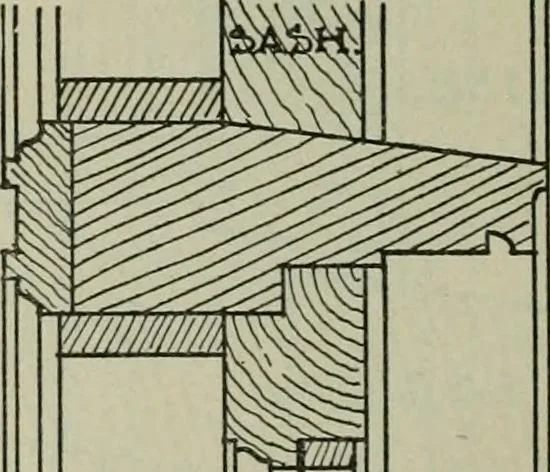

jla*>hiWls. GLAb*>. F-IG.1GO. APRC HUA&TCB? >llvl^. … FIG. 156. FIG.1G1. PLATE 71—CASEMENT WINDOW WITHOUT OUTSIDE ARCHITRAVE For outward opening casements of ordinary con-struction as in shingled dwellings where, for ar-tistic reasons, no outside architrave is desired. Fig.156, section through window head. Note methodof flashing. Fig. 157, section…
Building · Architecture
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
