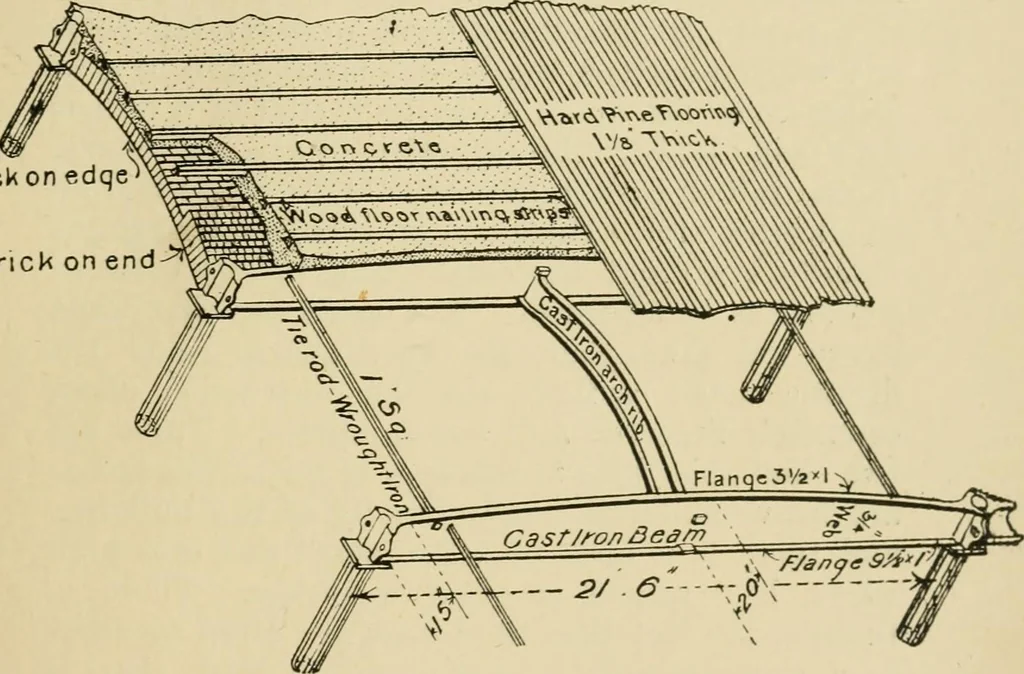

ng a bottom flange 9inwide and lin. thick, and a top flange of 3 Jin. wideand lin. thick, the web being |in. thick. Thesebeams are made in lengths to fit between thecolumns, and are semi-circular at each end to fit thecircular nipple of the pillar, the latter being providedwith a flange to sustain… … Fig. 5. best practice the collar on the column and thegirder ends are machined, so as to give a true base ;and, as the column used for the next floor is socketedso as to fit on to the nipple of the one below andrest on the girder, it is easy to see that the machin-ing is almost a necessity. The…
